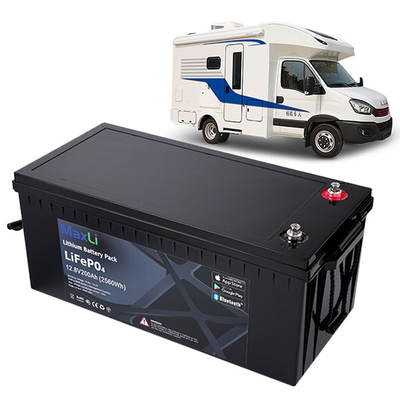

12.8V 200Ah RV Lifepo4 Battery

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

12.8V 200Ah RV Lifepo4 Battery

12.8V 200Ah RV Lifepo4 Battery
12.8V 200Ah RV Lifepo4 Battery

Large Image :  12.8V 200Ah RV Lifepo4 Battery

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: MaxLi
Certification: CE/RoHS/UN38.3/ISO
Model Number: YS-12-200-BT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 475-500USD
Packaging Details: well package with 25mm foam and high quality UN standard carton
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 3000pcs/m
Detailed Product Description
Norminal Voltage: 12.8V Norminal Capacity: 200Ah
Battery Cell: Grade A 32700 Cylindrical Battery Cell Cycle Life: >3000 Cycles @1C 100%DOD
Months Self Discharge: <3% Charge Mode: 0.2C To 14.4V, Then 14.4V,charge Current To 0.02C (CC/CV)
Charge Voltage: 14.4±0.1V Max. Pulse Current: 450A(<2s)
Dimensions (mm.): 523x235x222mm Weight (kg.): 26Kg
Terminal: M8 Pure Copper Nickel Plated
High Light:

200Ah RV Lifepo4 Battery

,

12.8V RV Lifepo4 Battery

,

12.8V Deep Cycle Lithium Ion Battery

12.8V 200Ah RV Lifepo4 Battery



Lithium Ion Deep Cycle 12.8V 200Ah RV LiFePO4 Battery With Bluetooth



12.8V 200Ah Deep Cycle RV LiFePO4 Battery 2560Wh Lithium Ion Battery With Bluetooth



MaxLi LITHIUM LiFePO4 battery models are purpose built to replace and fit the standard groupings of BCI 6V, 8V and 12V (GC) batteries.

Used in renewable energy, work vehicles, utility electric vehicles, golf-carts, floor care machines, and aerial work platforms, MaxLi batteries incorporate a proprietary high-current BMS that delivers superior peak power along with lightning fast 1C continuous charge and discharge rates.Independently tested to the highest safety, performance and transportation standards, a single battery will do the work of many lead-acid batteries and unlike lead-acid batteries can be continuously operated in a partial state of charge (PSOC) without degrading performance.



Specifications of MaxLi Bluetooth 12V 200Ah rechargeable LiFePO4 battery used for RV/Camperings/Motorhomes:





Electrical Characteristics
Nominal Voltage
12.8V
Nominal Capacity
200Ah
Energy
2560Wh
Internal Resistance
≤ 20mΩ
Cycle Life
>3000cycles @1.0C 100%DOD
Months Self Discharge
<3%
Efficiency of Charge
100%@0.2C
Efficiency of Discharge
96~99%@0.5C


Standard Charge
Charge Voltage
14.4±0. 1V
Charge Mode
0.2C to 14.4V,then 14.4V,charge current to 0.02C(CC/CV)
Charge Current
100A
Max. Charge Current
150A
Charge Cut-off Voltage
14.6V±0. 1V

Standard Discharge
Continuous Current
150A
Max. Pulse Current
450(<2s)
Discharge Cut-off Voltage
10.0V


Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance
IP65



Mechanical
Cell & Method
32700 6 Ah 4S34P
Shell material
ABS Case
Dimensions (in./mm.)
523x235x222mm
Weight (lbs./kg.)
Approx:26Kg
Terminal
M8
Communications
New Version Bluetooth



Who is MaxLi battery?

MaxLi battery is a full qualified manufacturer of high standard Lithium ion battery under a wide range of specs.

A wholly-own factory located in dongguan city with multi professional production lines.

Wide product ranges from 12V-48V series LFP with built in smart BMS and Top Grade A cylindrical and prismatic battery cells.

12.8V 200Ah RV Lifepo4 Battery 0

Applications of MaxLi Bluetooth 2560Wh 12V RV lithium ion battery:

MaxLi rechargable LiFePO4 batteries are commonly used for Marine, Recreational vehicles, Golf Cart applications, CCTV, robotics, PV energy storage, etc.

MaxLi LiFePO4 Battery can be used for any system or application that would normally use Lead acid battery (AGM, GEL) in 12V, up to 48V. After removing your old batteries, place MaxLi LiFePO4 batterie in the same way.

You may use the same cables to reconnect MaxLi LiFePO4 battery.

12.8V 200Ah RV Lifepo4 Battery 1

CE/ROHS/UN38.3/MSDS certificates applied to meet the High Quality Standard:

12.8V 200Ah RV Lifepo4 Battery 2

FAQ:

Q1. OEM/ODM service is available?

A: OEM/ODM service is available for customers worldwide with strict QC and confidential rules applied .

Q2. How about your Lithium Lifepo4 Battery delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3: How about your warranty?

A: Every MaxLi battery has 3years manufacturer warranty.

Q4. Is there any MOQ required?

A:For sample there without any MOQ required,for bulk orders can base on the local market,we support every potential customers to test and evaluate the market first,will do our best to support them as we can.
