Product Details:
Payment & Shipping Terms:
|
| Battery Type: | 12V LiFePO4 Battery | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | 102Ah | Charge Voltage: | 14.6V |
| Constant Discharge Current: | 100A | Max Charge Current: | 100A |
| Peak Current: | 300A Last For 3 Second | Size: | L328*W72*H12mm |
| Case: | IP56 ABS Case | Warranty: | 3 Years |
| Weight: | 12.5kgs | Cycle Life: | 2000times @ 100%DOD 1C Rate |
| High Light: | 12v 100ah lithium iron lifepo4 battery,32700 Cells lithium iron lifepo4 battery,IP56 lifepo4 battery cells |
||
UN38.3 32700 Cells 12V 100Ah 200Ah Lithium Phosphate Battery for Camper RV Off grid system
Key Features:
High power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity wider temperature range: -20℃~60℃.
Ligther weight: About 40% of the weight of a comparable lead acid battery. A “dron in”replacement for lead acid batteries.
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Long cycle life: offers up to 20 times longer cycle life and 5 times longer/calendar life the nlead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

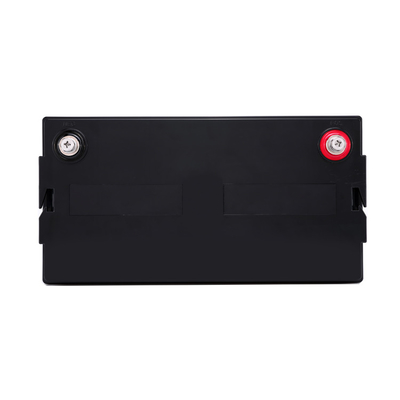

12V Lithium Battery reference photo 2 colors Black, Light Grey
12V 100Ah Lithium Battery Parameter
|
Electrical Characteristics |
|
12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance | ≤20mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
|
100% @0.5C | |
|
|
96~99% @1C | |
|
Standard Charge |
14.4±0.1V | |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
| 50A | ||
| Max charge current | 100A | |
| 14.6V±0.1V | ||
|
Standard Discharge |
Continuous Current | 100A |
| Max. Pulse Current | 300A(<2s) | |
|
|
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | ||
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6000mAh 4S17P |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | 330*173*217mm (13.0"*6.81"*8.54") | |
| Weight (kg./lbs.) | 12.5kg (28.85lbs) | |
| Terminal | M8 | |
| Communication | Bluetooth APP(optional) | |
LiFePO4 12V 100Ah Battery Application:
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments /
Military Equipment.
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /
Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light /
LED Backup / Engine Starting Battery,etc.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also builted with bluetooth function allow you to read battery status freely anytime.
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A.Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
