Product Details:
Payment & Shipping Terms:
|
| Battery Type: | 36V 100Ah LiFePo4 Akku | Nominal Voltage: | 38.4V |
|---|---|---|---|
| Charging Voltage: | 43.2V | Nominal Capacity: | 100Ah |
| Constant Discharge Current: | 100A | Constant Charge Current: | 100A |
| Peak Current: | 300A Last For 2 Seconds | Built-in BMS: | With |
| Size: | 525mm*267mm*222mm | Weight: | 35kgs |
| Bluetooth Monitoring APP: | Opetional | ||
| High Light: | 32700 lithium 36 volt battery,ROHS lithium ion phosphate battery,3840Wh lithium ion phosphate battery |
||
MaxLi LiFePO4 Battery 36V 100Ah Lithium Lifepo4 akku Battery with Super Long Cycle LiFe ＞2000 times
Advantages of LiFePO4 battery
Long cycle life
No memory effect
High energy density
Pollution-free
High discharge rate
Light weight
High working voltage for single battery cells
Capacity, resistance, Voltage, platform time consistency is good
With short-circuit production function, safe and reliable
Good consistency, low self discharge
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc

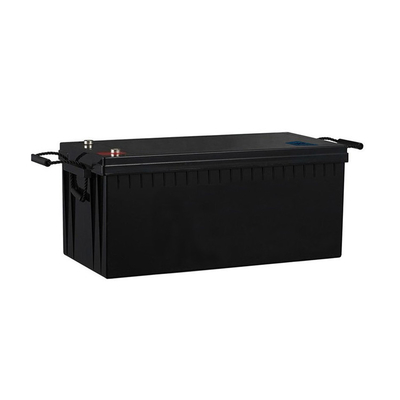

Reference Photo of 36V 100Ah Lithium AKKU
LiFePO4 Battery 36V 100Ah specification
| Model No. | YS36-100-C |
| Nominal Voltage | 38.4V |
| Nominal Capacity @ 0.2C | 100Ah |
| Watt-Hour | 3840Wh |
|
Dimensions Length Width Height |
523mm 267mm 222mm |
| Weight | Approx. 35Kg |
| Internal Resistance | ≤40mΩ @ 50% SOC |
| Recommended Charge Current | 50A |
| BMS Maximum Charge Current | 100A |
| Charge Cut-off Voltage | 43.2V |
| BMS Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A (3S) |
| Discharge Cut-off Voltage | 30.0V |
| Expected Cycle Life | Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 1C |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical 32700, 12S17P |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Housing Material | ABS |
| Enclosure Protection | IP56 |
| Terminal Type | M8 |
| Communication | Bluetooth (optional) |
Storage & Transportation
Due on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
The battery should be stored in 50% SOC during transportation.
Battery should be stayed in the ware house -20℃～35℃ where dry, clean, shade, and well-ventilated.
The battery need to be charged every 6 months if out of use.
Keep the battery against dropping, turning over and serious stacking during loading.
Warning & Tips
Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
When the battery run out of power, please charge it within 15 days；
Please use the original or recommended charger for this battery;
If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
lDo not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
Please far away from children or pets.
Period of Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Our service
1. All of our your inquires and emails will be replied within 24 hours
2. Our professional engineer team can provide you one stop battery solution
3. Battery voltage,capacity,case material,BMS and dimension can be customized
4. All of 48V 40Ah LifePO4 battery will be tested one by one before shipment
5. We can print your own logo on case or make customized label
6. We offer 2 years warranty and continuous technical support
