200AH Lithium Lifepo4 Battery

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

200AH Lithium Lifepo4 Battery

200AH Lithium Lifepo4 Battery
200AH Lithium Lifepo4 Battery 200AH Lithium Lifepo4 Battery 200AH Lithium Lifepo4 Battery

Large Image :  200AH Lithium Lifepo4 Battery

Product Details:
Place of Origin: China
Brand Name: MaxLi
Certification: CE, UN38.3, MSDS, ISO9001, ROHS
Model Number: YS12-200
Payment & Shipping Terms:
Minimum Order Quantity: consultation
Price: consultation
Packaging Details: Standard export Carton Box
Delivery Time: 15days for sample
Payment Terms: T/T, , Alibaba Trade Assurance
Supply Ability: 5000pcs per month
Detailed Product Description
Battery Type: 12V LiFePO4 Batttery Nominal Voltage: 12.8V
Nominal Capacity: 200Ah Constant Discharge Current: 150A
Max Charge Current: 150A Recommend Charge Current: 75A
Peak Current: 450A Warranty: 3 Years
Cycle Life: 2000 Times @100%DOD 1C Ratae Size: L523*W235*H222mm
Weight: 26kgs Optional: Bluetooth Monitoring APP
Colour: Black
High Light:

12V 200AH Lithium Lifepo4 Battery

,

32700 cell e bike lifepo4 battery

,

32700 lithium battery

Bluetooth Deep cycle12v 200ah Lithium Lifepo4 Battery Pack for Solar Storage System UPS



Brief introduction:



With bluetooth and heated function lithium ion lifepo4 12v 200ah battery litium batteries

MaxLi provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.

In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

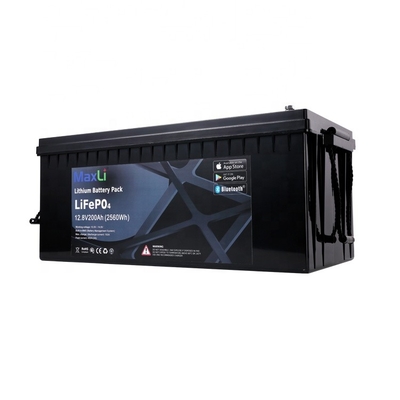

12v 200ah Storage battery reference photo, black, light grey





200AH Lithium Lifepo4 Battery 0



12V 200Ah LiFePO4 Battery Specification





Model No. YS12-200
Nominal Voltage 12.8V
Nominal Capacity @ 0.2C 200Ah
Watt-Hour 2560Wh

Dimensions

Length

Width

Height

523mm

235mm

222mm

Weight Approx. 26Kg
Internal Resistance ≤40mΩ @ 50% SOC
Recommended Charge Current 75A
BMS Maximum Charge Current 150A
Charge Cut-off Voltage 14.4V
BMS Maximum Continuous Discharge Current 150A
Peak Discharge Current 300A (3S)
Discharge Cut-off Voltage 10.0V
Expected Cycle Life Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 1C
Self Discharge <3% per month
Cell Type Cylindrical 32700, 8S17P

Operating Temperature

Charge

Discharge

Storage



0 - +55°C

-20 - +60°C

-5 - +35°C

Humidity RH≤85%
Housing Material ABS
Enclosure Protection IP56
Terminal Type M8
Communication Bluetooth (optional)



Lithium Battery 12V 200Ah Application



1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments /

Military Equipment.

2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /

Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light /

LED Backup / Engine Starting Battery,etc.



Bluetooth Function



LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also builted with bluetooth function allow you to read battery status freely anytime.


Self-heated Function



To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.



200AH Lithium Lifepo4 Battery 1

WHY CHOOSE US ?



HIGHPRODUCTIVITY
10 thousand square meters plant 5 automatic production line 10,000 battery packs and chargers production capacity a month.

STRICK CONTROL & BEST QUALITY
Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.

CUSTOMIZATION & FACTORY PRICE
We dedicated and experienced engineering, manufacturing and quality control teams work close to support our customers from product design to mass production.

EXCELLENT SERVICE
Reply within 24 working hours. We use specialized equipment, well-known suppliers of materials to resolve customer issues, to test every product in 100% for the quality assurance.



Our service



1. All of our your inquires and emails will be replied within 24 hours
2. Our professional engineer team can provide you one stop battery solution
3. Battery voltage,capacity,case material,BMS and dimension can be customized
4. All of 48V 40Ah LifePO4 battery will be tested one by one before shipment
5. We can print your own logo on case or make customized label
6. We offer 2 years warranty and continuous technical support
