IP56 Cylindrical 36V 120Ah Lithium Ion Battery

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

IP56 Cylindrical 36V 120Ah Lithium Ion Battery

IP56 Cylindrical 36V 120Ah Lithium Ion Battery
IP56 Cylindrical 36V 120Ah Lithium Ion Battery IP56 Cylindrical 36V 120Ah Lithium Ion Battery IP56 Cylindrical 36V 120Ah Lithium Ion Battery

Large Image :  IP56 Cylindrical 36V 120Ah Lithium Ion Battery

Product Details:
Place of Origin: China
Brand Name: MaxLi
Certification: CE, UN38.3, MSDS, ISO9001, ROHS
Model Number: YS36-100
Payment & Shipping Terms:
Minimum Order Quantity: consultation
Price: consultation
Packaging Details: Standard export Carton Box
Delivery Time: 15days for sample
Payment Terms: T/T, , Alibaba Trade Assurance
Supply Ability: 5000pcs per month
Detailed Product Description
Battery Type: 36V LiFePO4 Batttery Nominal Voltage: 38.4V
Nominal Capacity: 102Ah Constant Discharge Current: 100A
Max Charge Current: 100A Recommend Charge Current: 50A
Peak Current: 300A Warranty: 3 Years
Cycle Life: 2000 Times @100%DOD 1C Ratae Size: L523*W267*H222mm
Weight: 36kgs Optional: Bluetooth Monitoring APP
High Light:

120Ah lithium 36 volt battery

,

120ah 36v lithium trolling motor battery

,

IP56 36V lifepo4 battery

New product rechargeable lithium ion 36v 100ah 120ah lifepo4 li ion battery pack



Key Features:



Higher discharge rate, faster charging and discharging When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.



High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc



Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.



Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.



Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.



Cycle durability for a single cell is 2000 cycles 100% DOD, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.

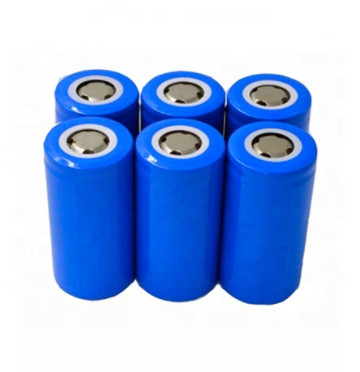

36v 100ah Storage battery reference photo

IP56 Cylindrical 36V 120Ah Lithium Ion Battery 0



36V 100Ah LiFePO4 Battery Specification





Model No. YS36-100
Nominal Voltage 38.4V
Nominal Capacity @ 0.2C 100Ah
Watt-Hour 3840Wh

Dimensions

Length

Width

Height



523mm

267mm

222mm

Weight Approx. 36Kg
Internal Resistance ≤40mΩ @ 50% SOC
Recommended Charge Current 50A
BMS Maximum Charge Current 100A
Charge Cut-off Voltage 43.8V
BMS Maximum Continuous Discharge Current 100A
Peak Discharge Current 300A (3S)
Discharge Cut-off Voltage 30.0V
Expected Cycle Life Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 1C
Self Discharge <3% per month
Cell Type Cylindrical 32700 6Ah

Operating Temperature

Charge

Discharge

Storage



0 - +55°C

-20 - +60°C

-5 - +35°C

Humidity RH≤85%
Housing Material ABS
Enclosure Protection IP56
Terminal Type M8
Communication Bluetooth (optional)



Lithium Battery 36v 100ah Application



1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments /

Military Equipment.

2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /

Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light /

LED Backup / Engine Starting Battery,etc.



IP56 Cylindrical 36V 120Ah Lithium Ion Battery 1

Warning & Tips



Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
When the battery run out of power, please charge it within 15 days;
Please use the original or recommended charger for this battery;
If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
lDo not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
Please far away from children or pets.



Period of Warranty



The period of warranty is 3years-5years from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
