ABS IP56 307.2Wh 12V Lithium Battery

China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

ABS IP56 307.2Wh 12V Lithium Battery

ABS IP56 307.2Wh 12V Lithium Battery
ABS IP56 307.2Wh 12V Lithium Battery ABS IP56 307.2Wh 12V Lithium Battery ABS IP56 307.2Wh 12V Lithium Battery

Large Image :  ABS IP56 307.2Wh 12V Lithium Battery

Product Details:
Place of Origin: China
Brand Name: MaxLi Battery
Certification: CE, UN38.3, MSDS, ISO9001, Rohs
Model Number: YS12-24
Payment & Shipping Terms:
Minimum Order Quantity: consultation
Price: consultation
Packaging Details: Standard Export Carton Box
Delivery Time: 15 days for sample
Payment Terms: T/T, , Alibaba Credit Insurance transaction
Supply Ability: 5000pcs per month
Detailed Product Description
Battery Type: 12V LiFePO4 Battery Nominal Voltage: 12.8V
Nominal Capacity: 24Ah Charge Voltage: 14.6V
Constant Discharge Current: 25A Max Charge Current: 25A
Peak Current: 75A Last For 3 Second Size: L181*W76*176mm
Case: IP56 ABS Case Warranty: 3 Years
Weight: 3.5kgs Cycle Life: 2000times @ 100%DOD 1C Rate
High Light:

307.2Wh 12V Lithium battery


307.2Wh li iron phosphate battery


IP56 ABS lithium ion battery

Customize Deep Cycle LiFePO412v24ah LiFePO4 Lithium Battery Pack


Key Features:


High power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity wider temperature range: -20℃~60℃.


Ligther weight: About 40% of the weight of a comparable lead acid battery. A “dron in”replacement for lead acid batteries.


Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.


Long cycle life: offers up to 20 times longer cycle life and 5 times longer/calendar life the nlead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

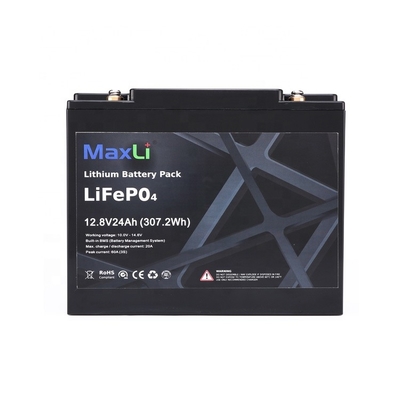

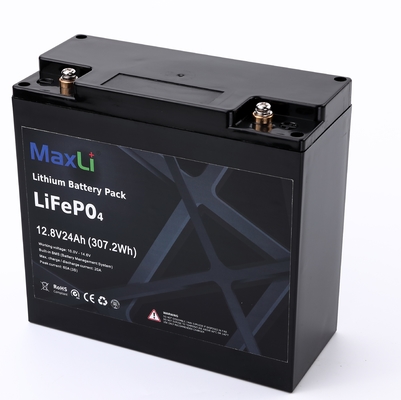

12V Lithium Battery reference photo

ABS IP56 307.2Wh 12V Lithium Battery 0

12V 24Ah Lithium Battery Parameter






Electrical Characteristics


ABS IP56 307.2Wh 12V Lithium Battery 1

Nominal Capacity 24Ah
Energy 307.2Wh
Internal Resistance ≤20mΩ
Cycle Life >2000 cycles @1C 100%DOD
Months Self Discharge <3%


ABS IP56 307.2Wh 12V Lithium Battery 2

100% @0.5C


ABS IP56 307.2Wh 12V Lithium Battery 3

96~99% @1C



Standard Charge

Charge mode 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV)
Max charge current 25A


Standard Discharge

Continuous Current 25A
Max. Pulse Current 75A(<2s)


ABS IP56 307.2Wh 12V Lithium Battery 4




Charge Temperature 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
  0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance IP56





Cell & Method 32700 6000mAh
Plastic Case ABS
Dimensions (mm./in.) L181*W76*176mm
Weight (kg./lbs.) 3.5kgs
Terminal M8
Communication Bluetooth APP(optional)


LiFePO4 12V 24Ah Battery Application:


1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments /

Military Equipment.

2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /

Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light /

LED Backup / Engine Starting Battery,etc.


ABS IP56 307.2Wh 12V Lithium Battery 5

Warning & Tips


Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;

When the battery run out of power, please charge it within 15 days;

Please use the original or recommended charger for this battery;

If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;

lDo not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.

Please far away from children or pets.


Period of Warranty


The period of warranty is 3years-5years from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
