Product Details:
Payment & Shipping Terms:
|
| Battery Type: | 36V 100Ah LiFePo4 Akku | Nominal Voltage: | 38.4V |
|---|---|---|---|
| Charging Voltage: | 43.2V | Nominal Capacity: | 100Ah |
| Constant Discharge Current: | 100A | Constant Charge Current: | 100A |
| Peak Current: | 300A Last For 2 Seconds | Built-in BMS: | With |
| Size: | 525mm*220mm*240mm | Weight: | 35kgs |
| Bluetooth Monitoring APP: | Opetional | ||
| High Light: | 100Ah 36V lithium ion battery for hoverboard,CE 36 volt lithium golf cart battery,100Ah 36 volt lithium golf cart battery |
||
MaxLi Solar energy storage 36V 100Ah Lifepo4 battery for electric motorcycle battery pack
Brief introduction:
With bluetooth and heated function lithium ion lifepo4 12v 100ah battery litium batteries
MaxLi provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.
In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

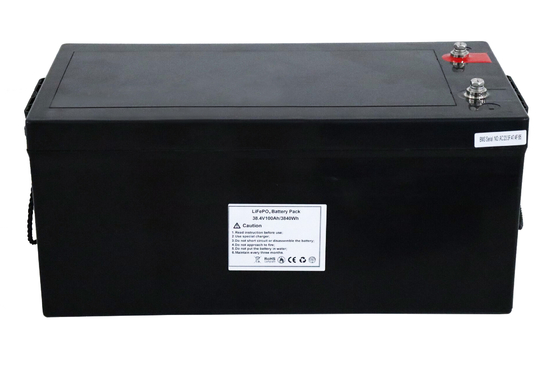

Reference Photo of 36V 100Ah Lithium AKKU
LiFePO4 Battery 36V 100Ah specification
| Model No. | YS36-100-C |
| Nominal Voltage | 38.4V |
| Nominal Capacity @ 0.2C | 100Ah |
| Watt-Hour | 3840Wh |
|
Dimensions Length Width Height |
523mm 267mm 222mm |
| Weight | Approx. 35Kg |
| Internal Resistance | ≤40mΩ @ 50% SOC |
| Recommended Charge Current | 50A |
| BMS Maximum Charge Current | 100A |
| Charge Cut-off Voltage | 43.2V |
| BMS Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A (3S) |
| Discharge Cut-off Voltage | 30.0V |
| Expected Cycle Life |
Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 1C |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical 32700, 12S17P |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Housing Material | ABS |
| Enclosure Protection | IP56 |
| Terminal Type | M8 |
| Communication | Bluetooth (optional) |
Storage & Transportation
Due on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
The battery should be stored in 50% SOC during transportation.
Battery should be stayed in the ware house -20℃～35℃ where dry, clean, shade, and well-ventilated.
The battery need to be charged every 6 months if out of use.
Keep the battery against dropping, turning over and serious stacking during loading.
Warning & Tips
Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
When the battery run out of power, please charge it within 15 days；
Please use the original or recommended charger for this battery;
If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
lDo not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
Please far away from children or pets.
Period of Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
