Product Details:
Payment & Shipping Terms:
|
| Battery Type: | 12V 120Ah Marine Battery | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Charging Voltage: | 14.6V | Nominal Capacity: | 120Ah |
| Constant Discharge Current: | 120A | Constant Charge Current: | 120A |
| Peak Current: | 300A | Built-in BMS: | Bluetooth |
| Size: | L328xW172xH212mm | Weight: | 15kgs |
| High Light: | 120Ah Rechargeable Marine Battery,120Ah lithium ion marine battery,32700 12 volt lithium ion marine battery |
||
12.8V 120ah rechargeable lifepo4 battery 12v 100ah 120ah for solar power storage
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
Advantages of LiFePO4 battery
Long cycle life
No memory effect
High energy density
Pollution-free
High discharge rate
Light weight
High working voltage for single battery cells
Capacity, resistance, Voltage, platform time consistency is good
With short-circuit production function, safe and reliable
Good consistency, low self discharge
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc

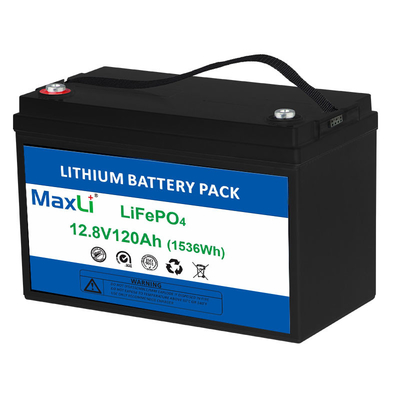

Reference photo of 12V 120Ah Marine battery
Specification of 12V 150Ah LiFePo4 battery
|
Electrical Characteristics |
Nominal Voltage |
12.8V |
| Nominal Capacity | 120Ah | |
| Energy | 1536Wh | |
| Internal Resistance | ≤20mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of charge |
100% @0.5C | |
|
Efficiency of discharge |
96~99% @1C | |
|
Standard Charge |
Charge votlage | 14.4±0.1V |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
| Recommend charge current | 60A | |
| Max charge current | 120A | |
| Charge cut off voltage | 14.6V±0.1V | |
|
Standard Discharge |
Continuous Current | 120A |
| Max. Pulse Current | 360A(<2s) | |
|
Discharge cut off voltage |
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| IP rate | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | 328x172x212mm | |
| Weight (kg./lbs.) | 15Kg | |
| Terminal | M8 | |
| Communication | Bluetooth APP | |
ATTENTION:
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
Packing
Carton + Wooden + Pallet , Custom is welcome
Shipping
Express | By air | By sea
According to your requirments
