Product Details:
Payment & Shipping Terms:
|
| Battery Type: | 12V 30Ah Marine Battery | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Charging Voltage: | 14.6V | Nominal Capacity: | 30Ah |
| Constant Discharge Current: | 30A | Constant Charge Current: | 30A |
| Peak Current: | 100A | Built-in BMS: | Bluetooth |
| Size: | L175*W165*H125mm | Weight: | 5kgs |
| Colour: | Black | ||
| High Light: | 30Ah Rechargeable Marine Battery,IP56 lithium ion deep cycle marine battery,30Ah lithium ion deep cycle marine battery |
||
12V 30Ah deep cycle solar lithium battery pack for solar street light
LiFePO4 Battery Features
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination

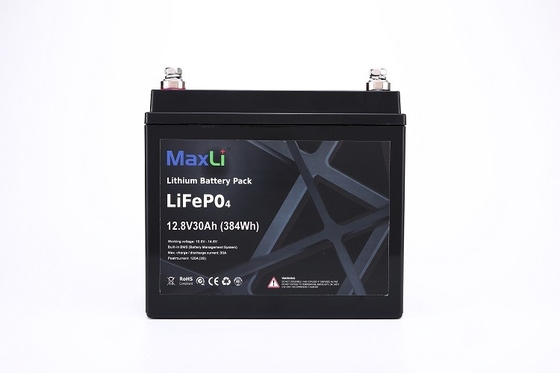

Reference photo of 12V 30Ah Marine battery
Specification of 12V 30Ah LiFePo4 battery
|
Electrical Characteristics |
Nominal Voltage |
12.8V |
| Nominal Capacity | 30Ah | |
| Energy | 384Wh | |
| Internal Resistance | ≤20mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of charge |
100% @0.5C | |
|
Efficiency of discharge |
96~99% @1C | |
|
Standard Charge |
Charge votlage | 14.4±0.1V |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
| Recommend charge current | 15A | |
| Max charge current | 30A | |
| Charge cut off voltage | 14.6V±0.1V | |
|
Standard Discharge |
Continuous Current | 30A |
| Max. Pulse Current | 100A(<2s) | |
|
Discharge cut off voltage |
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| IP rate | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | L175*W165*H125mm | |
| Weight (kg./lbs.) | 5Kg | |
| Terminal | M8 | |
| Communication | Bluetooth APP | |
WHY CHOOSE US ?
1.Experience--More than 5 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.
Packaging & Shipping
1. Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. For large order, ship by AIR or OCEAN.
