| Battery Type: | 12V 150Ah Marine Battery | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Charging Voltage: | 14.6V | Nominal Capacity: | 150Ah |
| Constant Discharge Current: | 150A | Constant Charge Current: | 150A |
| Peak Current: | 300A | Built-in BMS: | Bluetooth |
| Size: | L485xW240xH172mm | Weight: | 18kgs |
| High Light: | 32700 Cell Rechargeable Marine Battery,150Ah 12 Volt lithium ion marine battery,32700 Cell lithium ion marine battery |
||
China 150ah 12volt Nominal Voltage Rechargeable Marine Battery With 32700 Cell and BMS
Advantages of LiFePO4 battery
Long cycle life
No memory effect
High energy density
Pollution-free
High discharge rate
Light weight
High working voltage for single battery cells
Capacity, resistance, Voltage, platform time consistency is good
With short-circuit production function, safe and reliable
Good consistency, low self discharge
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc

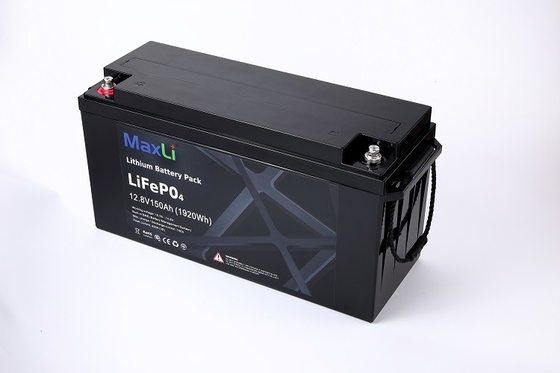

Reference photo of 12V 150Ah Marine battery
Specification of 12V 150Ah LiFePo4 battery
|
Electrical Characteristics |
Nominal Voltage |
12.8V |
| Nominal Capacity | 150Ah | |
| Energy | 1920Wh | |
| Internal Resistance | ≤20mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of charge |
100% @0.5C | |
|
Efficiency of discharge |
96~99% @1C | |
|
Standard Charge |
Charge votlage | 14.4±0.1V |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
| Recommend charge current | 100A | |
| Max charge current | 150A | |
| Charge cut off voltage | 14.6V±0.1V | |
|
Standard Discharge |
Continuous Current | 150A |
| Max. Pulse Current | 450A(<2s) | |
|
Discharge cut off voltage |
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| IP rate | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 4S25P |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | 485x240x172mm | |
| Weight (kg./lbs.) | 18Kg | |
| Terminal | M8 | |
| Communication | Bluetooth APP | |
LiFePO4 Battery Features
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination
Main applications of LifePO4 battery pack
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, electric boat, aircraft, toys
5. Solar and wind power generation energy storage devices,solar systems,Telecom base Station
6. Small medical equipment and portable equipment
7. RV,Camping car and yacht
8. Solar enegery lights,bicycle lights,LED lights,bright flashlight,solar street lights
WHY CHOOSE US ?
1.Experience--More than 5 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.
ATTENTION:
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
