18Ah 12V Lithium Battery

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

18Ah 12V Lithium Battery

18Ah 12V Lithium Battery
18Ah 12V Lithium Battery 18Ah 12V Lithium Battery 18Ah 12V Lithium Battery 18Ah 12V Lithium Battery

Large Image :  18Ah 12V Lithium Battery

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: MaxLi
Certification: CE/RoHS/UN38.3/ISO
Model Number: YS-12.8-18
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 55-75USD/PC
Packaging Details: well package with foam and high quality carton
Delivery Time: 10-20days
Payment Terms: T/T, , MoneyGram, L/C
Supply Ability: 2000pcs/m
Detailed Product Description
Type: LiFePO4 Size: 168mm*128mm*103mm
Application: Golf Trolley Warranty: 3 Years
Weight: 2.5kg Cycle Life: 3000 Times
Voltage: 12.8V Capacity: 18AH
OEM: Available Without Any MOQ Required
High Light:

18Ah 12V Lithium Battery

,

18Ah Golf Trolley Lithium Battery

,

UN38.3 12V Lithium Ion Battery

18Ah 12V Lithium Battery

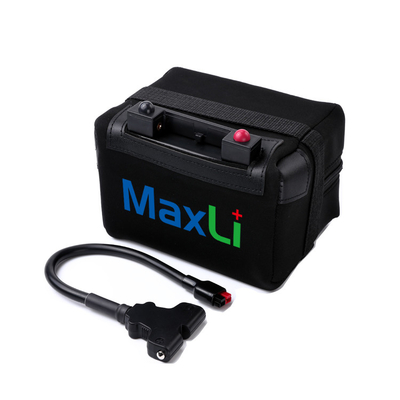

MaxLi 12.8V18AH LiFePO4 battery for Golf Trolley data sheet:



MaxLi Batteries are much lighter and charge fast, about 40% of the weight of a comparable lead acid battery. Delivers twice power of lead acid battery,even high discharge rate,while maintaining high energy capacity.Your RV or boat will likely have a compatible battery charger built in that is ready to use with MaxLi Batteries. Whether you are on the road, on the water or off the grid, MaxLi Battery offers a solution that outperforms the competition.

  • The golf trolley battery universal lithium battery has been designed to be compatible with the vast majority of electric trolleys in the market.
  •  This is an excellent alternative if you are looking to upgrade from a Lead Acid battery to a Lithium.
  • It is very lightweight and comes supplied with a special charger. An Anderson connector is also available as an optional extra.
Model No. Golf trolley 1-BT
Nominal Voltage 12.8V
Nominal Capacity  18Ah
Watt-Hour 230Wh

Dimensions

Length

Width

Height



168mm

128mm

76mm

Weight 2.5Kg
Internal Resistance ≤50mΩ @ 50% SOC
Recommended Charge Current 3A
BMS Maximum Charge Current 5A
Charge Cut-off Voltage 14.6V
BMS Maximum Continuous Discharge Current 20A
Peak Discharge Current 40A (<3S)
Discharge Cut-off Voltage 10.0V
Expected Cycle Life ≥3000 cycles at 0.2C/0.2C, 80% DoD
Self Discharge <3% per month
Cell Type Cylindrical

Operating Temperature

Charge

Discharge

Storage



0 - +55°C

-20 - +60°C

-5 - +35°C

Humidity RH≤85%
Case Material ABS
Terminal Lotus Plug(charge) T-Anderson connectors(discharge)
Communication Interface



18Ah 12V Lithium Battery 0

18Ah 12V Lithium Battery 1

18Ah 12V Lithium Battery 2

18Ah 12V Lithium Battery 3

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Grid Casting Machine Confidential 20 2.0 Acceptable
Powdering Production Line Confidential 3 2.0 Acceptable
Grid Pasting Production Line Confidential 4 3.0 Acceptable
Drying Room Confidential 35 2.0 Acceptable
Assembling Production Line Confidential 36 0.0 Acceptable
Four-station Casting and Welding Machine Confidential 4 2.0 Acceptable
Heat-sealing Machine Confidential 8 2.0 Acceptable
Airtight Detection Machine Confidential 8 2.0 Acceptable
H2SO4 Filling Machine Confidential 25 3.0 Acceptable
Energy Charging Machine Confidential 10 3.0

Acceptable

Testing Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Multifunction Testing Machine Confidential 20 2.0 Acceptable
Large Current Detector Confidential 4 2.0 Acceptable
High Temperature Test Box Confidential 2 2.0 Acceptable
Low Temperature Test Box Confidential 2 2.0 Acceptable
High Low Temperature Test Box Confidential 2 2.0 Acceptable
Materials Analysis Machine Confidential 1 2.0 Acceptable
Atomic Absorption Spectrophotometer Confidential 1 2.0 Acceptable
Micro-computer Compression Tester Confidential 1 2.0 Acceptable
Bursting Strength Tester Confidential 1 2.0 Acceptable
