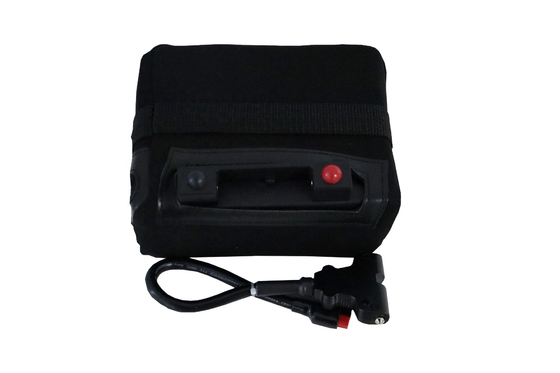

24Ah Golf Trolley Battery

China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

24Ah Golf Trolley Battery

24Ah Golf Trolley Battery
24Ah Golf Trolley Battery 24Ah Golf Trolley Battery 24Ah Golf Trolley Battery 24Ah Golf Trolley Battery

Large Image :  24Ah Golf Trolley Battery

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: MaxLi
Certification: CE/RoHS/UN38.3/ISO
Model Number: YS-12-24
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 65-85USD/PC
Packaging Details: well-package with foam and carton
Delivery Time: 10-20days
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 2000pcs/m
Detailed Product Description
Type: LiFePO4 Lithium Battery Application: Golf Trolley
Warranty: 3 Years Weight: 2.9kg
Cycle Life: 3000times Size: 168*128*103mm
Certification: CE/RoHS/UN38.3 Nominal Voltage: 12.8V
Oem/odm: Available Without MOQ Required Keywords: Golf Trolley Lithium Battery
High Light:

24Ah Golf trolley battery


24Ah Lifepo4 golf battery


12V lithium golf buggy batteries

MaxLi 12V24AH LiFePO4 battery for Golf Trolley battery


MaxLi Battery is a Lithium Iron Phosphate (LFP or LiFePO4) battery designed for recreational vehicle (RV) and Marine deep cycle use,suited for use in off grid homes and cabins, industrial applications and more. Our "drop in" replacement for lead acid batteries is unlike any other on the market. The built in BMS system offers 8 different protection modes including, over and under voltage, over and under temperature, over current, short circuit and balance function.

MaxLi Batteries are much lighter and charge fast, about 40% of the weight of a comparable lead acid battery. Delivers twice power of lead acid battery,even high discharge rate,while maintaining high energy capacity.Your RV or boat will likely have a compatible battery charger built in that is ready to use with MaxLi Batteries. Whether you are on the road, on the water or off the grid, MaxLi Battery offers a solution that outperforms the competition.


24Ah Golf Trolley Battery 0





Electrical Characteristics

Norminal Voltage24Ah Golf Trolley Battery 1 12.8V
Nominal Capacity 24Ah
Energy 307.2Wh
Internal Resistance ≤45mΩ
Cycle Life >3000 cycles @1C 100%DOD
Months Self Discharge <3%


Efficiency of Charge

100% @0.5C

Efficiency of Discharge

24Ah Golf Trolley Battery 2

96~99% @1C



Standard Charge

Charge Voltage 14.4±0.1V
Charge mode 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV)
Charge Current 4A
Max Charge Current 5A
Charge Cut-off voltage 14.6V±0.1V


Standard Discharge

Continuous Current 25A
Max. Pulse Current 35A(<3s)
Dicharge Cut-off voltage 10V



Charge Temperature 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water dust Resistance IP56





Cell & Method 32700 6Ah 4S4P
Plastic Case ABS
Dimensions (mm./in.) 168x128x103mm(6.61''*5.04''*4.06'')
Weight (kg./lbs.) 2.9Kgs(6.399lbs)
Terminal Lotus Plug(charge) T-Anderson connectors(discharge)


· Longer Cycle Life

· LIghter Weight

· Higher Power

· Wider Temperature Range

· Superior Safety

· Increased Flexibity


3. Application

· Electric vehicles,electric mobility

· Solar/ wind enengy storage system

· UPS,backup power

· Telecommunication

· Medical equipmen

· Lighting

24Ah Golf Trolley Battery 3

24Ah Golf Trolley Battery 4

The aging test curve:

24Ah Golf Trolley Battery 5

24Ah Golf Trolley Battery 6
