Product Details:
Payment & Shipping Terms:
|
| Type: | LiFePO4 | Size: | 194mm*130mm*162mm |
|---|---|---|---|
| Application: | Marine/Trolling Motor/Campering Car/Motorhomes | Warranty: | 3 Years |
| Weight: | 7.5KG | Cycle Life: | 3000 Times |
| Oem/odm: | Available Witout Any MOQ Required | BMS: | Smart BMS |
| Certificate: | UL/CE/RoHS/ISO/UN38.3/MSDS | Capacity: | 50AH |
| Case Material: | ABS Case | Voltage: | 12.8V |
| High Light: | 50ah lithium deep cycle battery,12V lithium ion deep cycle marine battery,UN38.3 lithium deep cycle rv battery |
||

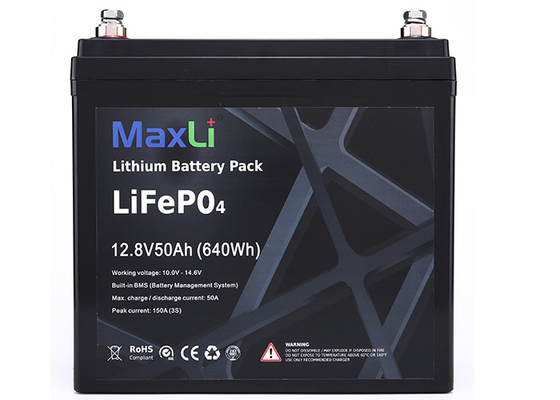

MaxLi 12V deep cycle battery 12V 50AH lithium battery 50AH LFP battery CE/ROHS/UN38.3 LiFePO4 battery
MaxLi Battery is a Lithium Iron Phosphate (LFP or LiFePO4) battery designed for recreational vehicle (RV) and Marine deep cycle use,suited for use in off grid homes and cabins, industrial applications and more. Our "drop in" replacement for lead acid batteries is unlike any other on the market. The built in BMS system offers 8 different protection modes including, over and under voltage, over and under temperature, over current, short circuit and balance function.
MaxLi Batteries are much lighter and charge fast, about 40% of the weight of a comparable lead acid battery. Delivers twice power of lead acid battery,even high discharge rate,while maintaining high energy capacity.Your RV or boat will likely have a compatible battery charger built in that is ready to use with MaxLi Batteries. Whether you are on the road, on the water or off the grid, MaxLi Battery offers a solution that outperforms the competition.
|
Electrical Characteristics |
Norminal Voltage |
12.8V |
| Nominal Capacity | 50Ah | |
| Energy | 640Wh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | >3000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of Charge |
100% @0.5C | |
|
Efficiency of Discharge
|
96~99% @1C | |
|
Standard Charge |
Charge Voltage | 14.4±0.1V |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
| Charge Current | 25A | |
| Max Charge Current | 50A | |
| Charge Cut-off voltage | 14.6V±0.1V | |
|
Standard Discharge |
Continuous Current | 50A |
| Max. Pulse Current | 150A(<2s) | |
|
Dicharge Cut-off voltage |
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 4S9P |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | 194x130x162mm | |
| Weight (kg./lbs.) | 7.5Kgs | |
| Terminal | M8 | |
Applications:
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.Applications
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
FAQ:
Q1: Are you a Factory or trading company?
A: We are manufacturer locates in Dongguan with integrated design, develop, manufacture, quality control and after sales. OEM/ODM service is available with strict QC and NDA rules without MOQ required.
Q2: When can I get the price?
A: Our sales will quote to you within 24 hours exclude public holiday.
Q3: How can I get a sample to check your quality?
A: After sample price confirmation, we will provide samples as soon as possible for your testing.
Q4: What is the lead time for mass production?
A: It depends on our stock. If we have stock, and the lead time will be within 7-20 days. If not, we will start to make your orders after receiving deposit and update lead time to you within 48 hours.
Q5: What is your payment term?
A: We can accept TT, LC, PAYPAL,, etc.
Q6: How about the shipment?
A: We can ship the goods by air , by sea or by express.
