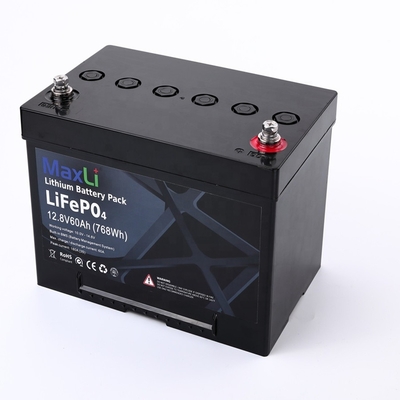

Large Image :  4S10P 768Wh 12 Volt Lithium RV Battery

Product Details:
Place of Origin: China
Brand Name: MaxLi
Certification: CE / ISO9001 / ISO14001 / ROHS,MSDS
Model Number: YS12-60-C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: UN Box
Delivery Time: samples will be finishd within 15 days; mass goods will be finished about 30-40 days depended on our stock.
Payment Terms: L/C, T/T, , MoneyGram,Paypal
Supply Ability: 1000pcs per month
Detailed Product Description
Nominal Voltage: 12.8V Nominal Capacity: 60Ah
Watt-Hour: 768Wh Size: 250mm *160mm *175mm
Weight: Approx.9.0Kg BMS Maximum Charge Current: 60A
Cycle Life: Residual Capacity Is More Than 80% Of Initial Capacity After 3,000 Cycles At 25℃, 1C Communication: Bluetooeh(optional)
High Light:

768Wh camper lithium battery

,

4S10P 12 volt lithium RV battery

,

768Wh 12 volt lithium RV battery

Best price 12V 60Ah battery for truck/cars/all kinds of vehicles With Bluetooth App

Lithium-lron-Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 3,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. MaxLi provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

1. Product Introduction

Model No.

YS12-60-C

Nominal Voltage

12.8V

Nominal Capacity @ 0.2C

60Ah

Watt-Hour

768Wh

Dimensions

Length

Width

Height



250mm

160mm

175mm

Weight

Approx. 9.0Kg

Internal Resistance

≤40mΩ @ 50% SOC

Recommended Charge Current

30A

BMS Maximum Charge Current

60A

Charge Cut-off Voltage

14.4V±0.1V

BMS Maximum Continuous Discharge Current

60A

BMS over current protection

130±20A (<16mS)

Discharge Cut-off Voltage

10.0V

Expected Cycle Life

Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 0.5C

Self Discharge

<3% per month

Cell Type

Cylindrical 32700, 4S10P

Operating Temperature

Charge

Discharge

Storage



0 - +55°C

-20 - +60°C

-5 - +35°C

Humidity

RH≤85%

Housing Material

ABS

Enclosure Protection

IP56

Terminal Type

M8

Communication

Bluetooth (optional)

2.  Related Products---Battery pack can be Customized

MaxLi 12.8V LiFePO4 battery packs with ABS case and built-in PCM are specially designed as replacement to 12V lead acid batteries.

Built-in PCM is able to prevent the battery from over-charging, over-discharging, over current, over temperature and short circuit.

PCM also balances the cells to extend the service life of the battery packs. Batteries can be used in series and parallel,

4 batteries can be connected in series at most, we recommend fewer than 10 batteries in parallel.

4S10P 768Wh 12 Volt Lithium RV Battery 0

3. Products  Advantage

  • Longer Cycle Life: Offers up to 20times longer cycle life and five

times longer float /calendar life than lead acid battery, helping to minimize replacement cost

and reduce total cost of ownership.

  • Lighter Weight: About 40% of the weight of a comparable lead acid battery.

A 'drop in' replacement for lead acid batteries.

  • Higher Power: Delivers twice power of lead acid battery ,even high discharge rate,

while maintaining high energy capacity.

  • Wider Temperature Range: -20℃~60℃.

  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of

explosion or combustion due to high impact, overcharging or short circuit situation.

  • Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.

4. Product Application

⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wireless
