|Nominal Voltage:||25.6V||Nominal Capacity:||50Ah|
|Watt-Hour:||1280Wh||Size:||329mm *172mm *223mm|
|Weight:||Approx. 13.5Kg||BMS Maximum Charge Current:||50A|
|Cycle Life:||Residual Capacity Is More Than 80% Of Initial Capacity After 3,000 Cycles At 25℃, 1C||Communication:||Bluetooth(optional)|
ISO14001 li iron phosphate battery,
1280Wh 24V lifepo4 battery,
Cylindrical lifepo4 lithium ion battery

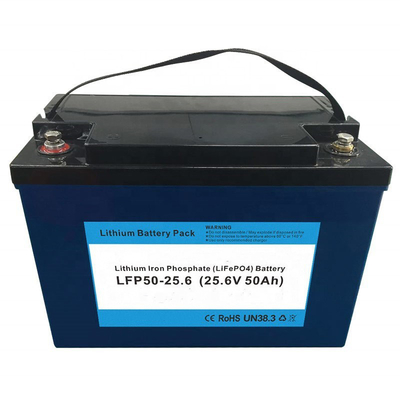

Deep Cyele Customized 24V 50Ah Lithium Lifepo4 Battery with Bluetooeh App
Every MaxLi battery has optional wireless Bluetooth communications built in. Our free iOS or Android App called “Lithium Bluetooth” keeps you informed about the functioning of your battery. Also included in our App is our Battery Monitoring feature so you will always know the State of Charge (SoC) or how much energy is left in the battery, this will save your hundreds of dollars buying an external battery monitor.
|Nominal Capacity @ 0.2C||50Ah|
|Internal Resistance||≤50mΩ @ 50% SOC|
|Recommended Charge Current||30A|
|BMS Maximum Charge Current||50A|
|Charge Cut-off Voltage||29.2V|
|BMS Maximum Continuous Discharge Current||50A|
|Peak Discharge Current||80A (5S)|
|Discharge Cut-off Voltage||20.0V|
|Expected Cycle Life||≥3000 cycles at 0.2C/0.2C, 80% DoD|
|Self Discharge||<3% per month|
|Charge||0 - +55°C|
|Discharge||-20 - +60°C|
|Storage||-5 - +35°C|
MaxLi 12.8V LiFePO4 battery packs with ABS case and built-in PCM are specially designed as replacement to 12V lead acid batteries.
Built-in PCM is able to prevent the battery from over-charging, over-discharging, over current, over temperature and short circuit.
PCM also balances the cells to extend the service life of the battery packs. Batteries can be used in series and parallel,
4 batteries can be connected in series at most, we recommend fewer than 10 batteries in parallel.
times longer float /calendar life than lead acid battery, helping to minimize replacement cost
and reduce total cost of ownership.
A 'drop in' replacement for lead acid batteries.
while maintaining high energy capacity.
explosion or combustion due to high impact, overcharging or short circuit situation.
