Product Details:
Payment & Shipping Terms:
|
Nominal Voltage: | 12V | Nominal Capacity: | 200Ah |
---|---|---|---|
BMS Maximum Charge Current: | 150A(200A Is Available) | Expected Cycle Life: | 3,000 Cycles@100%DOD,1C At 25℃ |
Peak Discharge Current: | 300A (2S) | Enclosure Protection: | ABS Case Or Customized |
Communication: | Bleutooth/RS232/CAN BUS For Option | Enclosure Protection: | IP56 |
Dimension: | 523x235x222mm | Application: | Camper Car, Golf Carts, Boat Or Others |
High Light: | 200AH Lifepo4 Battery Pack,IP65 lifepo4 portable power pack,12V 200AH lifepo4 power pack |

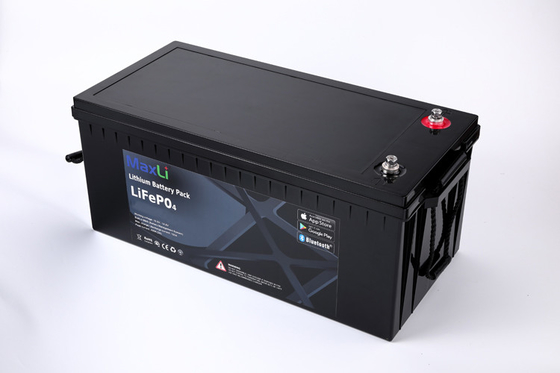

1.Specification
Voltage: 12V
Capacity: 200Ah
Case Type: Pure ABS CASE, IP65
Charge Connector: DC Plug
Discharge Connector: M10
Maximum Continuous Discharge Current: 150A
Peak Pulse Current: 300A (2 sec.)
Dimensions:(L x W x H): 523x235x222mm
Weight: 27.5kg
Includes built-in BMS:cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry.
3-year Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven
due to manufacturing process instead of the customer abuse and misuse.
2. Standard Test Conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five
times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of
45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity
25~85%RH.
3. Storage & Transportation
3. Application
Solar/wind energy storage
Generator storage
Golf cart/RV/EV/Boat
Floor cleaning machine
4.Production Team
5. Package
