Product Details:
Payment & Shipping Terms:
|
| Features: | Safety,Deep Cycle,Long Life,Lighter Weight Etc. | Type: | Lifepo4 Battery Pack |
|---|---|---|---|
| Size: | 523x235x222mm | Cycle Life: | >2000 Cycles @1C 100%DOD |
| Application: | Golf Carts,Solar Energy Storage,Power Wall,RV,Electric Bicycle Etc. | Nominal Capacity: | 200Ah |
| Nominal Voltage: | 12.8V | Compact Desiged: | Built In BMS |
| Trasportation: | By Air,by Sea Or By Express. | OEM/ODM: | Accepatable |
| Warranty: | 3 Years | ||
| High Light: | ISO9001 12 volt lithium rv battery,2560wh solar cell rechargeable battery,ISO9001energy power deep cycle battery |
||

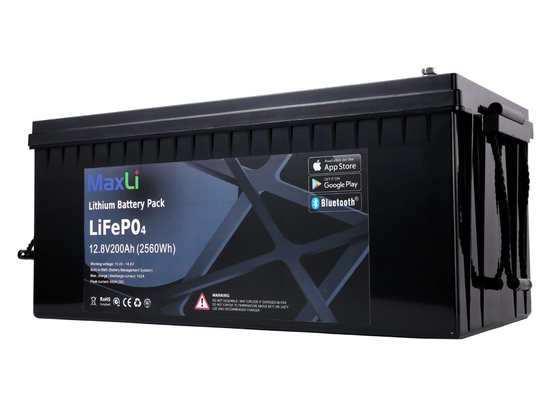

12V 200Ah Lithium Deep Cycle Lifepo4 Battery 18650
Advantages of our Lifepo4 Battery Pack :
* Low discharge rate, no memory effect
* Short cricuit and overcharge protection
* Low recurring operation cost
* Environment-friendly
* Minimal self-discharge, less than 8% monthly
* Protection functions(over charge/discharge/current protection, teperature/short current/balanced protection)
Specification
| Model No. | YS 12-200-C |
| Nominal Voltage | 12.8V |
| Nominal Capacity @ 0.2C | 200Ah |
| Watt-Hour | 2560Wh |
|
Dimensions Length Width Height |
523mm 235mm 222mm |
| Weight | 26Kg |
| Internal Resistance | ≤50mΩ @ 50% SOC |
| Recommended Charge Current | 30A |
| BMS Maximum Charge Current | 150A |
| Charge Cut-off Voltage | 14.6V |
| BMS Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 450A (5S) |
| Discharge Cut-off Voltage | 10.0V |
| Expected Cycle Life | ≥2000 cycles at 0.2C/0.2C, 80% DoD |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Case Material | ABS |
| Terminal | M8 bolt |
| Communication Interface | Bluetooth(Optional) |
Why Choose Us
More Competitive Features
Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
Wide Applications
Power Tools, Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems,Solar Energy Storage Systems etc.
