Product Details:
Payment & Shipping Terms:
|
| Nominal Voltage: | 12.8V | Nominal Capacity: | 120Ah |
|---|---|---|---|
| Watt-Hour: | 1536Wh | Size: | 330mm*173mm*215mm |
| BMS Maximum Charge Current: | 120A | Cycle Life: | Residual Capacity Is More Than 80% Of Initial Capacity After 3,000 Cycles At 25℃, 1C |
| High Light: | 120Ah Bluetooth Lithium Battery,1536Wh Bluetooth Lithium Battery,MSDS Bluetooth LiFePO4 Battery |
||

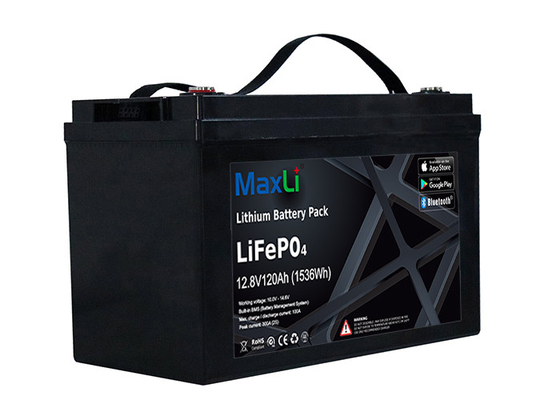

Smart 12V 120Ah Lithium Battery with Bluetooth Function
MaxLi developed a Bluetooth series LiFePO4 battery packs in voltage 12.8V - 51.2V. Through Android and iOS APP, users can see real-time
battery status on a smart mobile phone. Bluetooth monitoring APP is uploaded in Google Play Store and App Store. APP for reference
Battery infomration: SOC in %, real-time voltage, remaining capacity, pack status, current, temperature, cycles, cell status and company information.
MaxLi can add your company logo and information in the APP and change the language, we also can customize the APP according to your
special requirements.
1. Product Introduction
|
Model No. |
YS12-120-BT-C |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity @ 0.2C |
120Ah |
|
Watt-Hour |
1536Wh |
|
Dimensions Length Width Height |
330mm 173mm 215mm |
|
Weight |
Approx. 15.0Kg |
|
Internal Resistance |
≤40mΩ @ 50% SOC |
|
Recommended Charge Current |
20A |
|
BMS Maximum Charge Current |
120A |
|
Charge Cut-off Voltage |
14.6V |
|
BMS Maximum Continuous Discharge Current |
120A |
|
Peak Discharge Current |
360A (2S) |
|
Discharge Cut-off Voltage |
10.0V |
|
Expected Cycle Life |
Residual capacity is more than 80% of initial capacity after 3,000 cycles at 25℃, 1C |
|
Self Discharge |
<3% per month |
|
Cell Type |
Cylindrical 32700, 4S20P |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
|
Humidity |
RH≤85% |
|
Housing Material |
ABS |
|
Enclosure Protection |
IP65 |
|
Terminal Type |
M8 |
|
Communication |
Bluetooth(optional) |
2. Related Products---Battery pack can be Customized
MaxLi 12.8V LiFePO4 battery packs with ABS case and built-in PCM are specially designed as replacement to 12V lead acid batteries.
Built-in PCM is able to prevent the battery from over-charging, over-discharging, over current, over temperature and short circuit.
PCM also balances the cells to extend the service life of the battery packs. Batteries can be used in series and parallel,
4 batteries can be connected in series at most, we recommend fewer than 10 batteries in parallel.
3. Products Advantage
Longer Cycle Life: Offers up to 20times longer cycle life and five
times longer float /calendar life than lead acid battery, helping to minimize replacement cost
and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery.
A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery ,even high discharge rate,
while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of
explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
4. Product Application
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wireless
