Product Details:
Payment & Shipping Terms:
|
| Features: | Safety,Deep Cycle,Long Life,Lighter Weight Etc. | Type: | 12V 100Ah Lifepo4 Battery |
|---|---|---|---|
| Size: | 328x172x212mm | Cycle Life: | >3000 Cycles @1C 100%DOD |
| Application: | Caravan/RV,Golf Carts/Trolley,Marine,Solar Energy Storage Systems Etc. | Nominal Capacity: | 100Ah |
| Nominal Voltage: | 12.8V | Compact Design: | Built In BMS |
| Optional: | With Led Display/with Bluetooth Etc. | OEM/ODM: | Customize Is Welcomed |
| High Light: | 150Ah Rechargeable Lifepo4 Battery,1280Wh Rechargeable Lifepo4 Battery,100A LED Indicator Lifepo4 Battery |
||
Specification
|
Item Name
|

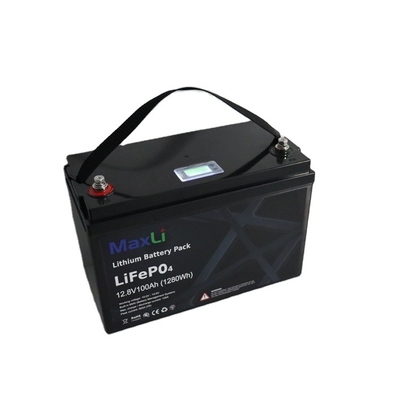

LifePO4 12V 100Ah 150Ah 200Ah
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
100Ah
|
|
Energy
|
1280Wh
|
|
Cycle Life
|
>2000 cycles @1C 100%DOD
|
|
Charge Voltage
|
14.4±0.1V
|
|
Charge Mode
|
0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV)
|
|
Charge Current
|
50A
|
|
Max Charge Current
|
100A
|
|
Charge Cut-off Voltage
|
14.6V±0.1V
|
|
Continuous Current
|
100A
|
|
Max Pulse Current
|
300A (<2S)
|
|
Discharge Cut-off Voltage
|
10V
|
|
Size
|
328x172x212mm
|
|
Weight
|
13kg
|
|
Charge Temp.
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
Discharge Temp.
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
Storage Temp.(60-80% SOC Storage)
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP56
|
|
Communication
|
Bluetooth APP
|
