Product Details:
Payment & Shipping Terms:
|
Cell Type: | Lifepo4 Cell Grade A Quality | Nominal Voltage: | 12.8V |
---|---|---|---|
Nominal Capacity: | 150Ah | Product Weight: | Approx 20KG |
BMS Maximum Charge Current: | 150A( Standard) | Expected Cycle Life: | Round 3,000 Cycles@100%DOD,1C At 25℃ |
Peak Discharge Current: | 300A (2S) | Enclosure Protection: | Pure ABS IP56 |
Dimension: | 485x172x240mm | Terminal: | M8 Terminal |
Recommend Charge CurrentCharge Current: | 0.2C Current | ||
High Light: | 150Ah Bluetooth Lithium Battery,M8 Terminal Bluetooth Lithium Battery,IP56 12V Deep Cycle Battery |

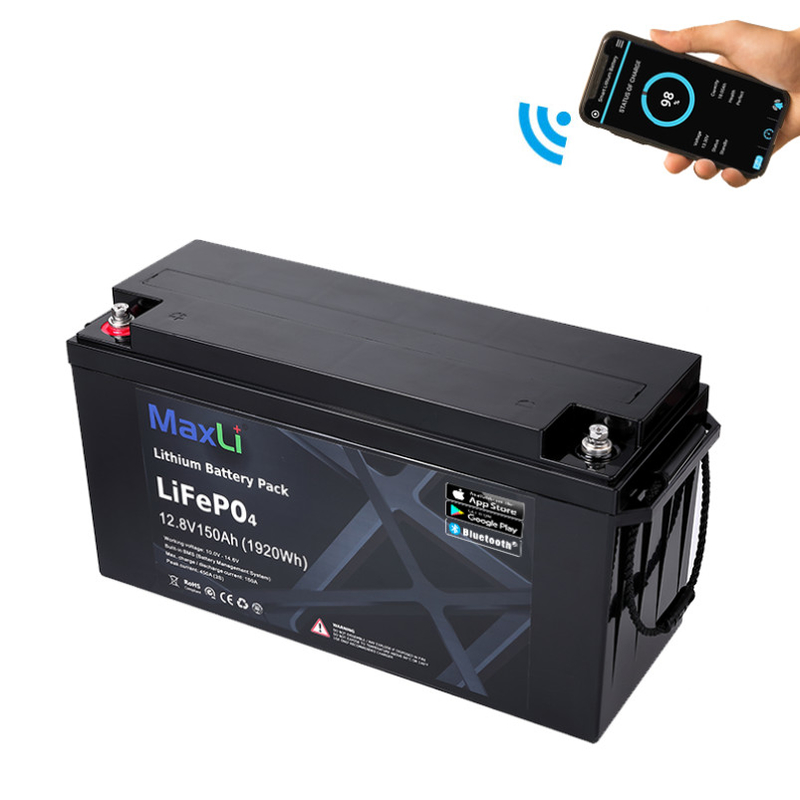

ABS Deep Cycle12 Volt 150Ah Bluetooth Lithium Battery M8 Terminal
ABS 12 Volt 150Ah Lithium Ion Deep Cycle Battery Solar System
MaxLi Lifepo4 Battery pack 12V 150AH - 100A BMS - Bluetooth monitoring function
Founded in 2015, we are a ISO9001 and ISO14001 registered manufacturer of lithium-ion battery, our Li-NCM and LiFePO4 batteries
are widely used in solar, RV, marine, TBS and e-mobility application.
1. SPECIFICATIONS
Nominal Voltage |
12.8V |
Nominal Capacity |
150Ah |
Watt-Hour |
2560Wh |
Dimensions |
485x172x240mm |
Weight |
20KG |
Internal Resistance |
≤40mΩ @ 50% SOC |
Recommended Charge Current |
40A |
BMS Maximum Continuous Discharge Curren |
150A |
Peak Discharge Current |
300A(2S) |
Discharge Cut-off Voltage |
10.0V |
Expected Cycle Life |
3,000 cycle @ 100%DOD,1C at 25℃ |
Self Discharge |
<3% per month |
Cell Type |
Cylindrical cell |
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
Housing Material |
RH≤85% |
Housing Material |
ABS(IP56) |
Terminal Type |
M8 |
Communication |
Blueooth for option |
New APP function:
1. Can display or hide single cell voltage
2. Users can monitor battery informations via App
3. The battery can be activated via Bluetooth
4. Will have an alarm if the battery is abnormal
5. OEM service is available.
6. App is available in both app stores(Android and Iphone)
Period of Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
CAPACITY
150 ampere hours. MaxLi Lithium batteries provide consistent power for all 150 amp hours. MaxLi LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges.
LIFECYCLES (BATTERY LIFESPAN)
Up to 100% capacity for 3,000 cycles in recommended conditions. The typical SLA has 400 cycles. MaxLi Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Smart Built-in BMS
passive balancing(active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besies, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.
2. PERFORMANCE AND TEST CONDITIONS
Performance And Test Conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
3. STANDARD CHARGE/DISCHARGE
Standard Charge : 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge : 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
If no otherwise specified, the rest time between charging and discharging is 30min.
4. MAIN APPLICATION
Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
5. Why Choose MaxLi LiFePO4 Battery Pack?
1. All MaxLi lithium batteries are made of LiFePO4 Grade A cells, which are the most stable and safe lithium cell.
2. Our battery pack use imported IC & MOS ( ST, RT chip) , pure coppe, Pure copper nickel-plated terminals, 304stainless steel screw and etc.
3. All batteries will be full inspection 100% before shpping, provide 3/5 years warranty
4. We provide MSDS/UN38.3/CE or other certifications for shipping
5. MaxLi have professional development and resarch team on pack technology, espcially in Bluetooth, heating system, RS232/RS485/CAN.
6. FAQ of MaxLi Lithium Rechargeable Battery Pack?
Q1: Are you a Factory or trading company?
A: We are manufacturer locates in Dongguan with integrated design, develop, manufacture, quality control and after sales. We are experienced in OEM/ODM project and you are welcomed to visit our company.
Q2: When can I get the price?
A: Our sales will quote to you within 24 hours exclude public holiday.
Q3: How can I get a sample to check your quality?
A: After sample price confirmation, we will provide samples as soon as possible for your testing.
Q4: What is the lead time for mass production?
A: It depends on our stock. If we have stock, and the lead time will be within 30 days. If not, we will start to make your orders after receiving deposit and update lead time with you in 48 hours.
Q5: What is your payment term?
A: We can accept TT, LC, PAYPAL,, etc.
Q6: How about the shipment?
A: We can ship the goods by air , by sea or by express.
