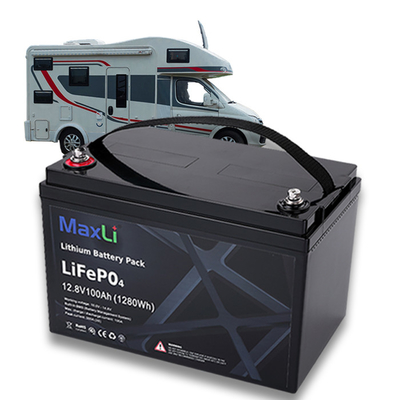

1280Wh RV Lifepo4 Battery

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

1280Wh RV Lifepo4 Battery

1280Wh RV Lifepo4 Battery
1280Wh RV Lifepo4 Battery

Large Image :  1280Wh RV Lifepo4 Battery

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: MaxLi
Certification: CE/RoHS/UN38.3/ISO
Model Number: YS-12-100-BT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 210-260USD
Packaging Details: well package with 25mm foam and high quality UN standard carton
Delivery Time: 10-30days
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 3000pcs/m
Detailed Product Description
Battery Types: 12V 100Ah LiFePO4 Battery Certification: CE/ROHS/UN38.3/MSDS
Charge Mode: 0.2C To 14.4V, Then 14.4V,charge Current To 0.02C (CC/CV) Charge Voltage: 14.4±0.1V
Size: 330*173*217mm (13.0"*6.81"*8.54") Weight: 12.8kg (28.85lbs)
Terminal: M8 Pure Copper Nickel Plated
High Light:

1280Wh RV Lifepo4 Battery

,

12V 100Ah RV Lifepo4 Battery

,

1280Wh Motorhome Lithium Battery

1280Wh RV Lifepo4 Battery



12V 100Ah 1280Wh RV Lifepo4 Battery Motorhome Lithium Battery



12V 100Ah LiFePO4 Battery RV/Caravans/Motorhomes Lithium Ion Batteries



Who is MaxLi battery?

MaxLi battery is a full qualified manufacturer of high standard Lithium ion battery under a wide range of specs.

A wholly-own factory located in dongguan city with multi professional production lines.

Wide product ranges from 12V-48V series LFP with built in smart BMS and Top Grade A battery cells.



Datasheet of MaxLi 12V 100Ah RV/Campers/Caravans/Motorhome car:





Electrical Characteristics
Nominal Voltage
12V
Nominal Capacity
100Ah
Energy
1280Wh
Internal Resistance
≤ 20mΩ
Cycle Life
>3000cycles @1.0C 100%DOD
Months Self Discharge
<3%
Efficiency of Charge
100%@0.2C
Efficiency of Discharge
96~99%@0.5C




   Standard Charge
Charge Voltage
14.4±0. 1V
Charge Mode
0.2C to 14.4V,then 14.4V,charge current to 0.02C(CC/CV)
Charge Current
80A
Max. Charge Current
100A
Charge Cut-off Voltage
14.6V±0. 1V

 Standard Discharge
Continuous Current
100A
Max. Pulse Current
300A(<3S)
Discharge Cut-off Voltage
10.0V



    Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance
IP65




    Mechanical
Cell & Method
32700 6 Ah 4S17P
Shell material
ABS Case
Dimensions (in./mm.)
330*173*218mm
Weight (lbs./kg.)
Approx:12.8Kg
Terminal
M8
Communications
New Version Bluetooth



What can I use MaxLi battery for?

MaxLi rechargable LiFePO4 batteries are commonly used for Marine, Recreational vehicles, Golf Cart applications, CCTV, robotics, PV energy storage, etc.

MaxLi LiFePO4 Battery can be used for any system or application that would normally use Lead acid battery (AGM, GEL) in 12V, up to 48V. After removing your old batteries, place MaxLi LiFePO4 batterie in the same way.

You may use the same cables to reconnect MaxLi LiFePO4 battery.

1280Wh RV Lifepo4 Battery 0

Strictly according to CE/ROHS/UN38.3/MSDS regulations to meet the high standard quality:

1280Wh RV Lifepo4 Battery 1



FAQ:

Q1. OEM/ODM service is available?

A: OEM/ODM service is available for customers worldwide with strict QC and confidential rules applied .

Q2. How about your Lithium Lifepo4 Battery delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3: How about your warranty?

A: Every MaxLi battery has 3years manufacturer warranty.

Q4. Is there any MOQ required?

A:For sample there without any MOQ required,for bulk orders can base on the local market,we support every potential customers to test and evaluate the market first,will do our best to support them as we can.
