|Nominal Voltage:||12V||Nominal Capacity:||120Ah|
|Weight:||14KG||BMS Maximum Charge Current:||120A|
|Expected Cycle Life:||Round 3,000 Cycles@1C Rate||Peak Discharge Current:||300A (2S)|
|Enclosure Protection:||Pure ABS Enclosure||Enclosure Protection:||IP56|

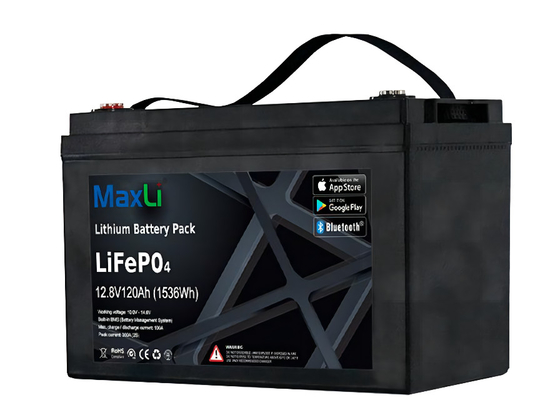

IP56 Deep Cycle Battery,
12.8V 120ah Deep Cycle Battery,
Boat Deep Cycle Marine Battery
High quality lithium battery! A safe battery with low weight, high capacity and long life.
Perfect battery for use in a boat, motorhome, camping or cabin.
With Bluetooth for monitoring via its own app!
Download the app in the App Store (Apple) / Google Play (Android) by scanning the QR code on the battery.
This battery has a heating element to be able to be charged in temperatures down to -20℃
|Internal Resistance||≤40mΩ @ 50% SOC|
|Recommended Charge Current||60A|
|BMS Maximum Continuous Discharge Curren||120A|
|Peak Discharge Current||300A(2S)|
|Discharge Cut-off Voltage||10.0V|
|Expected Cycle Life||3,000 cycle @ 100%DOD,1C at 25℃|
|Self Discharge||<3% per month|
|Cell Type||Cylindrical cell|
0 - +55°C
-20 - +60°C
-5 - +35°C
|Communication||Blueooth for option|
2. Features of LiFePO4 Battery
3. Advantages of MaxLi Low Temperature Lifepo4 Battery Pack
Perid of Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Life cycles (BATTERY LIFESPAN)
Up to 100% capacity for 3,000 cycles in recommended conditions. The typical SLA has 400 cycles. MaxLi Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Smart Built-in BMS
passive balancing(active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besies, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.
4. Performance and Test Conditions
Performance And Test Conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
5. Standard Charge/Discharge
Standard Charge : 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge : 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
If no otherwise specified, the rest time between charging and discharging is 30min.
6. Main Application
1. Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2. Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3. Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
Q: Are you trading company or manufacturer?
A: We are manufacturer directly of lithium ion battery, lifepo4 battery 12-48V(6-600Ah)
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable, indlues OEM bluetooth app, specific communciation CANBUS, RS485, or colorful case with LCD screen and etc
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on
