Product Details:
Payment & Shipping Terms:
|
| Battery Type: | Golf Cart Battery | Nominal Voltage: | 48V |
|---|---|---|---|
| Charging Voltage: | 54V | Nominal Capacity: | 50AH |
| Constant Discharge Current: | 50A | Constant Charge Current: | 50A |
| Peak Current: | 150A | Built-in BMS: | With |
| Size: | 412 X 438 X 135mm | Weight: | 31kgs |
| High Light: | 50Ah Golf Cart Lithium Battery,IP56 48V lithium golf cart battery,50Ah golf cart lithium battery packs |
||
Rechargeable Lifepo4 Battery 48v 50ah 100ah 200ah for Home Energy Storage can communicate with Victron

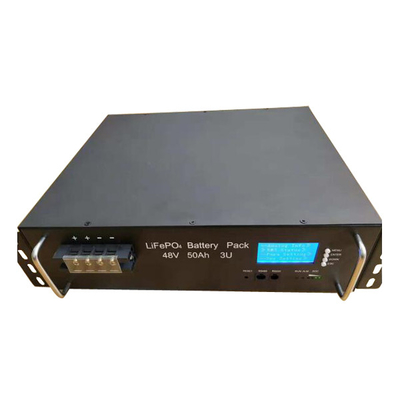

Reference photo of battery
Key Features :
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Specification of Golf cart battery
|
Electrical Characteristics |
Nominal Voltage | 48V |
| Nominal Capacity | 50Ah | |
| Energy | 2400Wh | |
| Internal Resistance | ≤ 50mΩ | |
| Cycle Life | ＞3000cycles @1.0C rate | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100% @0.2C | |
| Efficiency of Discharge | 96-99% @0.5C | |
|
Standard Charge |
Charge Voltage | 54.8±0. 1V |
| Charge Mode | 0.2C to 57.6V,then 57.6V,charge current to0.02C(CC/CV) | |
| Charge Current | 25A | |
| Max. Charge Current | 50A | |
| Charge Cut-off Voltage | 58.5V±0. 1V | |
|
Standard Discharge |
Continuous Current | 40A |
| Max continuous discharge current | 50A | |
| Discharge Cut-off Voltage | 37.5V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 15S 9 P |
| Shell material | Iron(SPCC) | |
| Dimensions (in./mm.) | 412 x 438 x 135 | |
| Weight (lbs./kg.) | Approx:31Kg | |
| Gravimetric specific energy | 85WH/KG | |
| Protocol (optional) | RS485/RS232 | |
| SOC (optional) | LED |
ATTENTION:
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V
Our service:
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000A
Warranty : 3- 5 years
OEM / ODM : Avaliable
Sample : Avaliable
MOQ : 1 piece
Custom : Lithium lifepo4 battery / gel battery / UPS product's Color, size or other requirments
Fast Production and Delivery time
Professional pack module design on cylindrical and Prismatic design
