Camping Caravan 24V 100AH Lifepo4 Battery

China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

Camping Caravan 24V 100AH Lifepo4 Battery

Camping Caravan 24V 100AH Lifepo4 Battery
Camping Caravan 24V 100AH Lifepo4 Battery Camping Caravan 24V 100AH Lifepo4 Battery

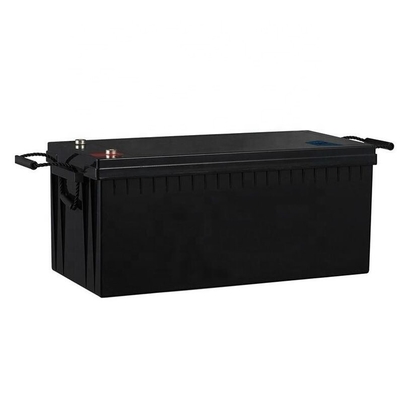

Large Image :  Camping Caravan 24V 100AH Lifepo4 Battery

Product Details:
Place of Origin: China
Brand Name: MaxLi
Certification: CE, UN38.3, MSDS, ISO9001, ROHS
Model Number: YS24-100
Payment & Shipping Terms:
Minimum Order Quantity: consultation
Price: consultation
Packaging Details: Standard export Carton Box
Delivery Time: 15days for sample
Payment Terms: T/T, , Alibaba Trade Assurance
Supply Ability: 5000pcs per month
Detailed Product Description
Battery Type: 24V LiFePO4 Batttery Nominal Voltage: 25.6V
Nominal Capacity: 102Ah Constant Discharge Current: 100A
Max Charge Current: 100A Recommend Charge Current: 50A
Peak Current: 300A Warranty: 3 Years
Cycle Life: 2000 Times @100%DOD 1C Ratae Size: L523*W235*H222mm
Weight: 26kgs Optional: Bluetooth Monitoring APP
High Light:

24V 100AH lifepo4 battery


24V iron phosphate battery


100AH 24v bluetooth replacement battery

Deep Cycle Battery 24V 100ah LifePO4 12V 200ah Lithium Ion Battery for solar power/camping caravan/RV/boat/yacht


Brief introduction:


With bluetooth and heated function lithium ion lifepo4 12V 24V  battery litium batteries.

MaxLi provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.

In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.


24v 100ah Storage battery reference photo, black, light grey


Camping Caravan 24V 100AH Lifepo4 Battery 0Camping Caravan 24V 100AH Lifepo4 Battery 1



24V 100Ah LiFePO4 Battery Specification



Model No. YS24-100
Nominal Voltage 25.6V
Nominal Capacity @ 0.2C 100Ah
Watt-Hour 2560Wh









Weight Approx. 26Kg
Internal Resistance ≤40mΩ @ 50% SOC
Recommended Charge Current 50A
BMS Maximum Charge Current 100A
Charge Cut-off Voltage 28.8V
BMS Maximum Continuous Discharge Current 100A
Peak Discharge Current 300A (3S)
Discharge Cut-off Voltage 20.0V
Expected Cycle Life Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 1C
Self Discharge <3% per month
Cell Type Cylindrical 32700 6ah

Operating Temperature





0 - +55°C

-20 - +60°C

-5 - +35°C

Humidity RH≤85%
Housing Material ABS
Enclosure Protection IP56
Terminal Type M8
Communication Bluetooth (optional)


Lithium Battery 24v 100ah Application


1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments /

Military Equipment.

2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /

Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light /

LED Backup / Engine Starting Battery,etc.


Camping Caravan 24V 100AH Lifepo4 Battery 2

Our service


1. All of our your inquires and emails will be replied within 24 hours
2. Our professional engineer team can provide you one stop battery solution
3. Battery voltage,capacity,case material,BMS and dimension can be customized
4. All of 48V 40Ah LifePO4 battery will be tested one by one before shipment
5. We can print your own logo on case or make customized label
6. We offer 2 years warranty and continuous technical support
