Product Details:
Payment & Shipping Terms:
|
| Battery Type: | Smart Bluetooth 12V | Nominal Voltage: | 12.8v |
|---|---|---|---|
| Charging Voltage: | 14.6V | Nominal Capacity: | 204Ah |
| Constant Discharge Current: | 150A | Constant Charge Current: | 150A |
| Peak Current: | 450A Last For 3 Seconds | Built-in BMS: | With Bluetooth |
| Size: | L523*W235*H222mm | Weight: | 26kgs |
| High Light: | 200Ah Bluetooth Lithium battery,200Ah energy power deep cycle battery,RV Camper iron phosphate battery |
||

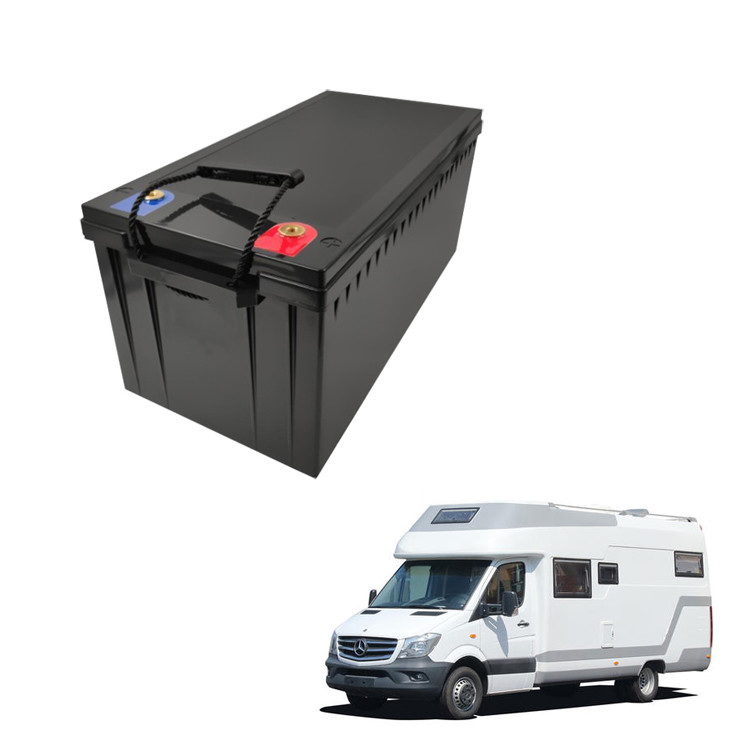

Rechargeable Lifepo4 Battery 12V 200ah Lithium Battery Packs with 2000 cycles for RV Camper Motor home
Reference photo of Smart bluetooth 12V 50Ah
The advantage of 12V 200Ah
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination
Specification of 12 volt 200Ah lithium batteries
|
Electrical Characteristics |
Nominal voltage |
12.8V |
| Nominal Capacity | 200Ah | |
| Energy | 2560Wh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of charge
|
100% @0.5C | |
|
Efficiency of discharge
|
96~99% @1C | |
|
Standard Charge |
Charge voltage | 28.8±0.1V |
| Charge mode | 0.2C to 28.8V, then 28.8V,charge current to 0. 02C (CC/CV) | |
| Recommend Current | 75A | |
| Max Charge Current | 150A | |
| Charge cut off voltage | 14.6V±0.1V | |
|
Standard Discharge |
Continuous Current | 150A |
| Max. Pulse Current | 450A(<2s) | |
|
Discharge cut off voltage |
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| IP rate | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 4S9P |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | L523*W235*H222mm | |
| Weight (kg./lbs.) | 26Kgs | |
| Terminal | M8 | |
| Bluetoot | with | |
Brief introducation
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
ADVANTAGES
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability
Our Service
1. Fast delivery service.
2. Quick response to your any inquiry within 12 hours.
3. We offer 3 years' warranty on our LiFePO4 battery.
4. Customized design is available, OEM and ODM are welcome.
5. Offer the highest quality with the best price.
6. Professional pre-sales service with whole-hearted after-sales service.
Packaging & Shipping
1. Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. For large order, ship by AIR or OCEAN.
