Product Details:
Payment & Shipping Terms:
|
| Battery Type: | Deep Cycle Lithium Batteries | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Charging Voltage: | 14.6V | Nominal Capacity: | 12Ah |
| Constant Discharge Current: | 15A | Constant Charge Current: | 15A |
| Peak Current: | 35A | Built-in BMS: | With |
| Size: | L151*W99*H95mm | Weight: | 3kgs |
| High Light: | 12V 12Ah LED Light Lithium Battery,Cylindrical LED light rechargeable battery,12Ah LED light rechargeable battery |
||

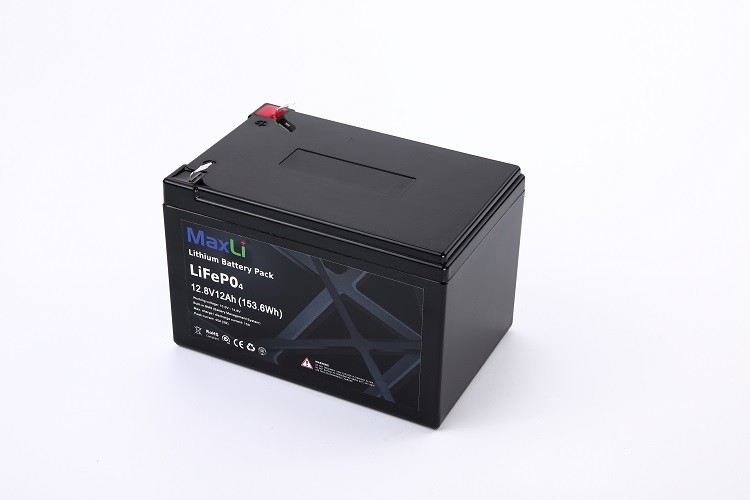

Rechargeable lithium ion battery pack 12v 12ah 32700 battery pack with bms and case
Specification of 12V 6Ah LiFePO4 Battery
| Model No. | YS12-6 |
| Nominal Voltage | 12.8V |
| Nominal Capacity @ 0.2C | 12Ah |
| Watt-Hour | 153.6Wh |
|
Dimensions Length Width Height |
151mm 65mm 94mm |
| Weight | 3Kgs |
| Internal Resistance | ≤50mΩ @ 50% SOC |
| Recommended Charge Current | 15A |
| BMS Maximum Charge Current | 15A |
| Charge Cut-off Voltage | 14.6V |
| BMS Maximum Continuous Discharge Current | 15A |
| Peak Discharge Current | 45A (5S) |
| Discharge Cut-off Voltage | 10.0V |
| Expected Cycle Life | ≥2000 cycles at 0.2C/0.2C, 80% DoD |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Case Material | ABS |
| Terminal | T2 |
| Communication Interface | Bluetooth (Optional) |
Main Applications of 12V LiFePO4 battery
Good quality and best price 12V 12Ah LiFePO4 battery
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Caravan / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
