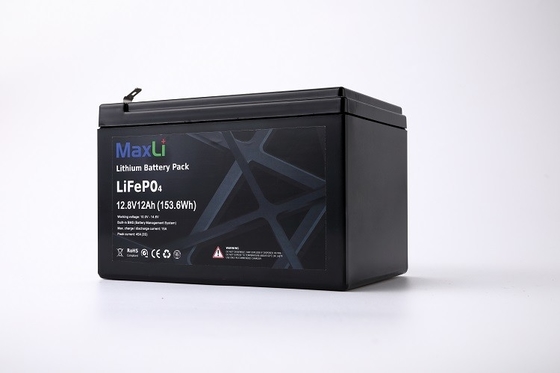

Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery

Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery
Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery

Large Image :  Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery

Product Details:
Place of Origin: China
Brand Name: MaxLi
Certification: CE, UN38.3, MSDS, ISO9001, ROHS
Model Number: YS12-12
Payment & Shipping Terms:
Minimum Order Quantity: consultation
Price: consultation
Packaging Details: Standard export carton box
Delivery Time: 15-20days for samples
Payment Terms: T/T, , Alibaba Trade Assurance
Supply Ability: 5000pcs per month
Detailed Product Description
Battery Type: 12V LiFePO4 Solar Battey Nominal Voltage: 12.8V
Charging Voltage: 14.6V Nominal Capacity: 12Ah
Constant Discharge Current: 15A Constant Charge Current: 15A
Peak Current: 30A Last For 3 Seconds Built-in BMS: With
Size: L151*W99*H95mm Weight: 2.5kgs
High Light:

32700 Cell inverter solar battery

,

12Ah solar cell battery

,

32700 Cell solar panel rechargeable battery

12v 12ah Rechargeable Solar Panel Battery For Golf Cart With 32700 Cells



Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery 0



Bluetooth Screenshot photo of LiFePO4 battery



Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery 1



Specification of 12V 12Ah rechargeable solar battery



Model No. YS12-12
Nominal Voltage 12.8V
Nominal Capacity @ 0.2C 12Ah
Watt-Hour 153.6Wh

Dimensions

Length

Width

Height



151mm

99mm

95mm

Weight Approx. 2.5Kg
Internal Resistance ≤40mΩ @ 50% SOC
Recommended Charge Current 10A
BMS Maximum Charge Current 15A
Charge Cut-off Voltage 14.6V
BMS Maximum Continuous Discharge Current 15A
Peak Discharge Current 30A (2S)
Discharge Cut-off Voltage 10.0V
Expected Cycle Life

Residual capacity is more than 80% of initial capacity after

2,000 cycles at 25℃, 1C

Self Discharge <3% per month
Cell Type Cylindrical 32700, 4S2P

Operating Temperature

Charge

Discharge

Storage



0 - +55°C

-20 - +60°C

-5 - +35°C

Humidity RH≤85%
Housing Material ABS
Enclosure Protection IP56
Terminal Type T2
Communication Bluetooth(optional)



The cell type can be specified,cylindrical and prismatic cells to make the battery

Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge

current, do not explode under extreme conditions and weigh less.



Main Applications

1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts

Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup

/ Engine Starting Battery,etc.



Heatproof 12V 12Ah 32700 Cell Inverter Solar Battery 2

Packaging & Shipping



1. Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. For large order, ship by AIR or OCEAN.
