Product Details:
Payment & Shipping Terms:
|
| Type: | LiFePO4 | Size: | 485x172x240mm |
|---|---|---|---|
| Application: | Solar Storage Energy/Marine/Trolling Motor/Campering Car/Motorhomes | Warranty: | 3 Years |
| Weight: | 17.5KG | Cycle Life: | 3000 Times |
| Oem/odm: | Available Witout Any MOQ Required | BMS: | Smart BMS |
| Certificate: | UL/CE/RoHS/ISO/UN38.3/MSDS | Capacity: | 150AH |
| Case Material: | ABS Case | Water Dust Resistance: | IP56 |
| High Light: | 150Ah 12V Lithium battery,Motorhomes lithium iron phosphate battery,150Ah li iron phosphate battery |
||

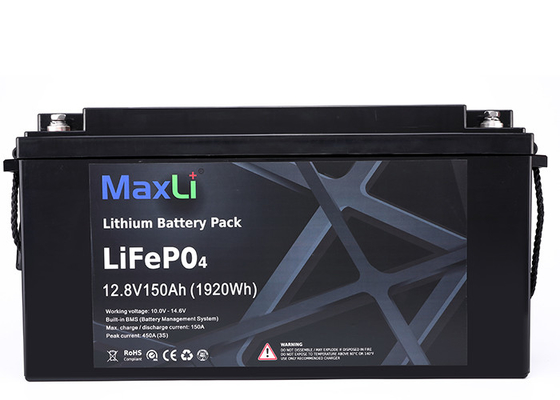

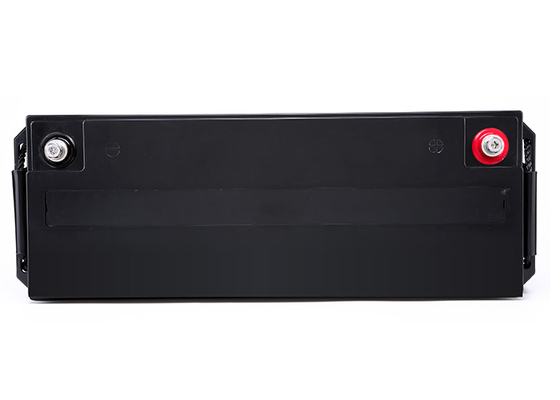

MaxLi 12V 150AH LiFePO4 deep cycle rechargeable battery with smart BMS for solar energy/Marine/Campering car/Caravaning car
MaxLi Battery is a Lithium Iron Phosphate (LFP or LiFePO4) battery designed for recreational vehicle (RV) and Marine deep cycle use,suited for use in off grid homes and cabins, industrial applications and more. Our "drop in" replacement for lead acid batteries is unlike any other on the market. The built in BMS system offers 8 different protection modes including, over and under voltage, over and under temperature, over current, short circuit and balance function.
MaxLi Batteries are much lighter and charge fast, about 40% of the weight of a comparable lead acid battery. Delivers twice power of lead acid battery,even high discharge rate,while maintaining high energy capacity.Your RV or boat will likely have a compatible battery charger built in that is ready to use with MaxLi Batteries. Whether you are on the road, on the water or off the grid, MaxLi Battery offers a solution that outperforms the competition.
| Model No. | YS12-150 |
| Nominal Voltage | 12.8V |
| Nominal Capacity @ 0.2C | 150Ah |
| Watt-Hour | 1920Wh |
|
Dimensions Length Width Height |
485mm 240mm 172mm |
| Weight | 17.5Kg |
| Internal Resistance | ≤50mΩ @ 50% SOC |
| Recommended Charge Current | 75A(0.5C) |
| BMS Maximum Charge Current | 150A |
| Charge Cut-off Voltage | 14.6V |
| BMS Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 450A (2S) |
| Discharge Cut-off Voltage | 10.0V |
| Expected Cycle Life | ≥2000 cycles at 0.2C/0.2C, 80% DoD |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Case Material | ABS |
| Terminal | M8 bolt |
| Communication Interface |
Applications:
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.ApplicationsApplications:
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
FAQ:
Q1: Are you a Factory or trading company?
A: We are manufacturer locates in Dongguan with integrated design, develop, manufacture, quality control and after sales. OEM/ODM service is available with strict QC and NDA rules without MOQ required.
Q2: When can I get the price?
A: Our sales will quote to you within 24 hours exclude public holiday.
Q3: How can I get a sample to check your quality?
A: After sample price confirmation, we will provide samples as soon as possible for your testing.
Q4: What is the lead time for mass production?
A: It depends on our stock. If we have stock, and the lead time will be within 7-20 days. If not, we will start to make your orders after receiving deposit and update lead time to you within 48 hours.
Q5: What is your payment term?
A: We can accept TT, LC, PAYPAL,, etc.
Q6: How about the shipment?
A: We can ship the goods by air , by sea or by express.
