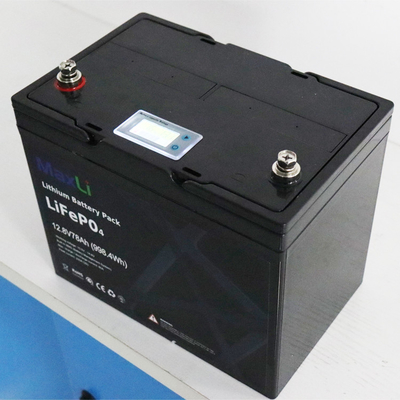

M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS

M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS
M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS

Large Image :  M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS

Product Details:
Place of Origin: China
Brand Name: MaxLI
Certification: CE, MSDS, UN38.3, ISO9001, ROHS
Model Number: YS-12.8-78
Payment & Shipping Terms:
Minimum Order Quantity: 5packs
Price: To be negotiated
Packaging Details: UN packing carton
Delivery Time: 10-15days for samples
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 5000pcs per month
Detailed Product Description
Type: Lithium Ion Batteries Size: 260mm*167mm*212mm
Cycle Life: >3000 Cycles @1C 100%DOD Application: Solar Battery,RV,Caravan,Motorhome Etc.
Weight: 10.5kg Nominal Voltage: 12.8V
BMS: Built In BMS Max Continuous Discharge Current: 80A
Peak Discharge Current: 230A (<3s) Battery Cell: Cylindrical 32700 Cell
Communication Interface: RS232/RS485/CAN/Bluetooth
High Light:

78Ah Lithium Iron Phosphate Battery

,

12.8V Lithium Battery

,

12.8V Lithium Iron Phosphate Battery

M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS



M8 Bolt 998Wh 12V 78Ah Lithium Iron Phosphate Battery



Specification

Model No.
YS12-78-BT
Nominal Voltage
12.8V
Nominal Capacity @ 0.2C
78Ah
Watt-Hour
998Wh

Size

260mm*168mm*212mm

Weight
10.5Kg
Internal Resistance
≤50mΩ @ 50% SOC
Recommended Charge Current
80A
BMS Maximum Charge Current
80A
Charge Cut-off Voltage
14.6V
BMS Maximum Continuous Discharge Current
15A
Peak Discharge Current
230A (3S)
Discharge Cut-off Voltage
10.0V
Expected Cycle Life
≥2000 cycles at 0.2C/0.2C, 80% DoD
Self Discharge
<3% per month
Cell Type
Cylindrical
Operating Temperature
Charge
Discharge
Storage

0 - +55°C
-20 - +60°C
-5 - +35°C
Humidity
RH≤85%
Case Material
ABS

Terminal

M8 bolt

Communication Interface

RS232/RS485/CAN/Bluetooth



Why Choose Us

Built-in Bluetooth Communication
With the integrated Bluetooth 4.0 monitoring, you always have an overview of all important battery data on your smartphone or tablet in real time:
Battery state of charge in% (SoC)
Battery voltage
Charge / discharge current
Remaining capacity
Battery temperature
Number of charge / discharge cycles
Nominal capacity
M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS 0

Wide Applications
Solar Energy Storage Systems,RV/Camper/Motorhomes, Golf Carts/Trolley/Buggy/Caddy, Marine/Yacht, Electric Bicycles/Scooters, Electric Vehicles etc.
M8 Bolt 12.8V 78Ah Lithium Iron Phosphate Battery Built in BMS 1

More Competitive Features
Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.

Company Profile

MaxLi Battery Ltd integrated with R&D, manufacture Lithium ion (LiNCM&LiFePO4) battery pack in Dongguan with own industrial park, sales office in Shenzhen, China. We have much experienced batteries&BMS engineering team, cooperating with world famous lithium battery control IC, MOSFETS and cells manufacture companies. OEM/ODM is our leading edge.
