Product Details:
Payment & Shipping Terms:
|
Features: | Safety,Maintence Free,Light Weight Etc. | Type: | 12v 100 Ah Lifepo4 Battery |
---|---|---|---|
Size: | 355x175x188mm | Cycle Life: | >3000 Cycles @1C 100%DOD |
Application: | RV/Caravan/Motorhome/Camper,Marine/Boat | Nominal Capacity: | 100Ah |
Nominal Voltage: | 12.8V | Compact Design: | Built In BMS And Bluetooth Monitor |
OEM/ODM: | Customize Is Welcomed | ||
High Light: | Removable Case DIY Lifepo4 Battery,Bluetooth Lifepo4 Battery 12V 100Ah,IP56 DIY Lifepo4 Battery |
Specification
Item Name
|

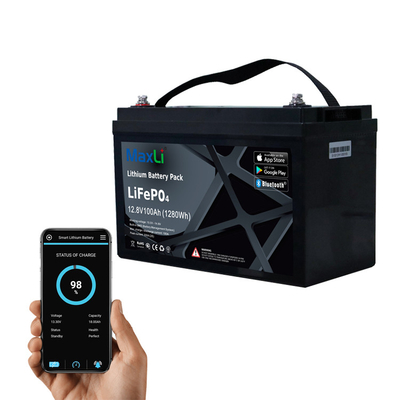

LifePO4 100Ah 12V
|
Nominal Voltage
|
12.8V
|
Nominal Capacity
|
100Ah
|
Energy
|
1280Wh
|
Cycle Life
|
>3000 cycles @1C 100%DOD
|
Charge Voltage
|
14.4±0.1V
|
Charge Mode
|
0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV)
|
Charge Current
|
50A
|
Max Charge Current
|
100A
|
Charge Cut-off Voltage
|
14.6V±0.1V
|
Continuous Current
|
100A
|
Max Pulse Current
|
300A (<2S)
|
Discharge Cut-off Voltage
|
10V
|
Size
|
355x175x188mm
|
Weight
|
13kg
|
Charge Temp.
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
Discharge Temp.
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
Storage Temp.(60-80% SOC Storage)
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
Water Dust Resistance
|
IP56
|
Communication
|
Bluetooth APP
|
