Product Details:
Payment & Shipping Terms:
|
Voltage: | 12.8V | Capacity: | 100Ah |
---|---|---|---|
Energy: | 1280Wh | Cycle Life: | 2,000 Cycles @100%DOD,1C At 25℃ |
Peak Discharge Current: | 300A (2S) | Charge Voltage: | 14.6V |
Cut-off Voltage: | 10V | Constant Charge Current: | 100A |
Discharge Current: | 100A | Peak Discharge Current: | 300A(2s) |
Dimension: | 328X172X240mm |

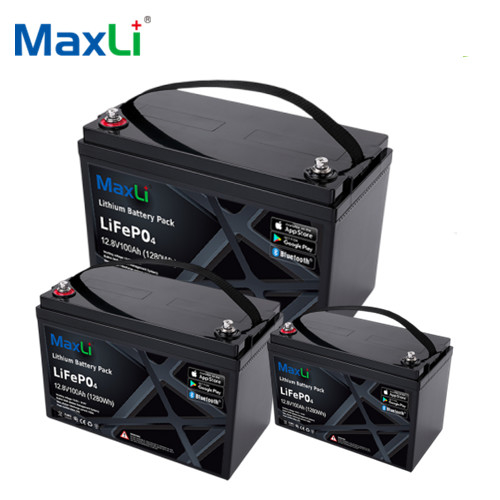

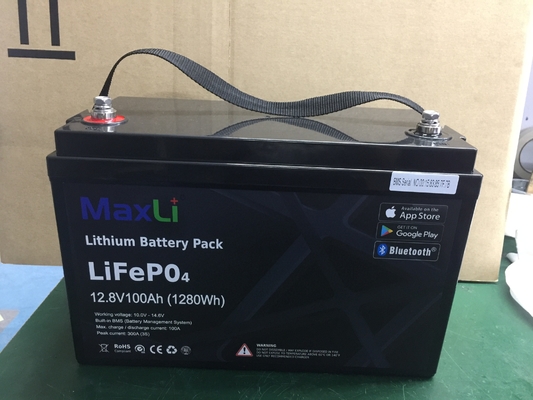

12.8V 100 Amper Hour Solar Lithium Battery with LCD/Bluetooth/Heating Functions
MaxLi 12V 100Ah lithium batteries provide up to 10 times longer life than a lead battery. Their charge and discharge values equal to an Agm or Gel battery make them a perfect replacement for these when we want to improve performance, reduce weight and increase battery cycles.
Nominal Voltage
|
12.8V
|
Nominal Capacity @ 0.2C
|
100Ah(1280Wh)
|
Weight
|
13.5Kg
|
Internal Resistance
|
≤40mΩ @ 50% SOC
|
Recommended Charge Current
|
20A
|
BMS Maximum Charge Current
|
100A
|
Charge Cut-off Voltage
|
14.6V
|
Expected Cycle Life
|
Approx 3,000 cycles @ 100%DOD, 1C at 25℃
|
Peak Discharge Current
|
300A (2S)
|
Enclosure protection
|
IP56
|
Series or Parallel
|
BMS can support wiring these batteries in series or parallel for up to 4 units
|
Operating Temperature
Charge Discharge Storage |
0 - +55°C |
Humidity
|
RH≤85%
|
Housing Material
|
ABS
|
Enclosure Protection
|
IP56
|
Terminal Type
|
M8
|
6. OEM service is available.
10 Advantages of MaxLi Battery:
1. Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short circuits;
2. Long cycle life, 100%DOD cycle for more than 2000 cycles remaining capacity more than 70%.
3. High energy density, low internal resistance;
4. Excellent safety performance, no explosion, no fire;
5. Good storage characteristics
6. Good high or cold temp performance
7. High capacity & light weight
8. Environmentally friendly
9. No memory effect
10. LCD display can be add.
Applications:
1. Motorhome,RV,camper car
2. UPS backup
3. Fire alarm and security systems
4. Telecommunication equipment
5. Electric equipment and telemeter equipment
6. Light equipment, dc 12v led lights
7. Wireless lawn movers vacuum cleaner and washing machine
8. Solar systems 12v
9.Portable power tools measuring and medical equipment
10.Portable video camera portable personal computer
1. All MaxLi lithium batteries are made of LiFePO4 Grade A cells, which are the most stable and safe lithium cell.
2. Our battery pack use imported IC & MOS ( ST, RT chip) , pure coppe, Pure copper nickel-plated terminals, 304stainless steel screw and etc.
3. All batteries will be full inspection 100% before shpping, provide 3/5 years warranty
4. We provide MSDS/UN38.3/CE or other certifications for shipping
5. MaxLi have professional development and resarch team on pack technology, espcially in Bluetooth, heating system, RS232/RS485/CAN.
FAQ
Q1: Why MaxLi lithium batteries?
A: Well its simple, as you can see even in our name our batteries are designed and built with marine grade internals. They are designed to withstand the toughest conditions put on the batteries. We use Grade A cells only, the most advanced BMS systems available, the toughest internal structure making our batteries the safest and most reliable batteries on the market today!
Q2: What Warranty do MaxLi lithium battery pack?
A: MaxLi Lithium battery has the most simple and non gimmick warranty on the market. Our warranty is a 3 or 5 year free replacement warranty.
If it is a product problem caused by our factory, we will give you a new replacement battery.
Q3: How can I get a sample to check your quality?
A: After sample price confirmation, we will provide samples as soon as possible for your testing.
Q4: What is the lead time for mass production?
A: It depends on our stock. If we have stock, and the lead time will be within 30 days. If not, we will start to make your orders after receiving deposit and update lead time with you in 48 hours.
Q5: What is your payment term?
A: We can accept TT, LC, PAYPAL,, etc.
Q6: How about the shipment?
A: We can ship the goods by air , by sea or by express
