Product Details:
Payment & Shipping Terms:
|
| Battery Type: | 48V LiFePO4 Batttery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Nominal Capacity: | 100Ah | Constant Discharge Current: | 100A |
| Max Charge Current: | 100A | Recommend Charge Current: | 50A |
| Peak Current: | 300A | Warranty: | 3 Years |
| Cycle Life: | 3000 Times @100%DOD 1C Rate @ 80% DOD | Size: | L650*W439*H178mm |
| Weight: | 55kgs | Optional: | RS232 /RS485 / Canbus |
| High Light: | Off Grid LiFePO4 Lithium Battery,LiFePO4 Lithium Battery 48V 100Ah,Heatproof solar energy storage batteries |
||
5KW off-grid 48V 100Ah Heatproof Deep Cycle LiFePO4 Lithium Battery Solar storage system battery
Key Features:
Higher discharge rate, faster charging and discharging When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
Cycle durability for a single cell is 2000 cycles 100% DOD, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc

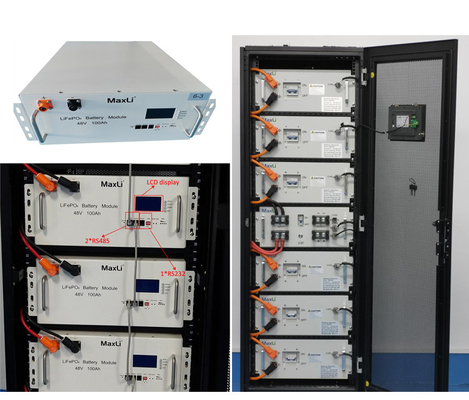

48v 100ah Storage battery reference photo, black, light grey
48V 100Ah LiFePO4 Battery Specification
|
Electrical Characteristics |
Nominal Voltage | 48V |
| Nominal Capacity | 100Ah | |
| Energy | 4800Wh | |
| Internal Resistance | ≤ 50mΩ | |
| Cycle Life | ＞3000cycles @1.0C rate | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100%@0. 2C | |
| Efficiency of Discharge | 96~99%@0.5C | |
|
Standard Charge |
Charge Voltage | 54±0. 1V |
| Charge Mode | 0.2C to 57.6V,then 57.6V,charge current to0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 80A | |
| Charge Cut-off Voltage | 58.5V±0. 2 | |
|
Standard Discharge |
Recommend Continuous Current | 50A |
| Max continuous discharge current | 100A | |
| Discharge Cut-off Voltage | 37.5V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 15S17P |
| Shell material | Iron(SGCC) | |
| Dimensions (in./mm.) | 650 x 438 x 178mm | |
| Weight (lbs./kg.) | Approx:55Kg | |
| Gravimetric specific energy | 87WH/KG | |
| Protocol (optional) | RS485/RS232/CANBUS | |
| SOC (optional) | LED |
Lithium Battery 48v 100ah Application
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments /
Military Equipment.
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /
Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light /
LED Backup / Engine Starting Battery,etc.
