Product Details:
Payment & Shipping Terms:
|
| Battery Type: | Deep Cycle Lithium Batteries | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Charging Voltage: | 14.6V | Nominal Capacity: | 6Ah |
| Constant Discharge Current: | 6A | Constant Charge Current: | 6A |
| Peak Current: | 20A | Built-in BMS: | With |
| Size: | L151*W99*H95mm | Weight: | 1.2kgs |
| High Light: | 6Ah li iron phosphate battery,6Ah panasonic lithium ion battery,Cylindrical lifepo4 lithium ion battery |
||
Deeo Cycle 12V 6Ah Li Iron Phosphate Battery for Solar LED street light
Key Features:
Higher discharge rate, faster charging and discharging When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
Cycle durability for a single cell is 2000 cycles 100% DOD, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.

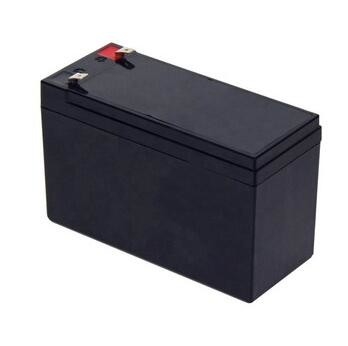

Reference photo of 12V 6Ah LiFePo4 AKKU
Specification of 12V 6Ah LiFePO4 Battery
| Model No. | YS12-6 |
| Nominal Voltage | 12.8V |
| Nominal Capacity @ 0.2C | 6Ah |
| Watt-Hour | 76.8Wh |
|
Dimensions Length Width Height |
151mm 65mm 94mm |
| Weight | 1.2Kgs |
| Internal Resistance | ≤50mΩ @ 50% SOC |
| Recommended Charge Current | 10A |
| BMS Maximum Charge Current | 10A |
| Charge Cut-off Voltage | 14.6V |
| BMS Maximum Continuous Discharge Current | 2A |
| Peak Discharge Current | 45A (5S) |
| Discharge Cut-off Voltage | 10.0V |
| Expected Cycle Life | ≥2000 cycles at 0.2C/0.2C, 80% DoD |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Case Material | ABS |
| Terminal | T2 |
| Communication Interface | Bluetooth (Optional) |
Main Applications of 12V LiFePO4 battery
Good quality and best price 12V 6Ah LiFePO4 battery
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Caravan / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
