Product Details:
Payment & Shipping Terms:
|
| Battery Type: | Deep Cycle Lithium Batteries | Nominal Voltage: | 25.6V |
|---|---|---|---|
| Charging Voltage: | 29.2V | Nominal Capacity: | 100Ah |
| Constant Discharge Current: | 100A | Constant Charge Current: | 100A |
| Peak Current: | 300A | Built-in BMS: | With |
| Size: | 650*438*178mm | Weight: | 55kgs |
| High Light: | 100Ah LED Light Lithium Battery,24V lithium ion phosphate battery pack,100Ah led light rechargeable battery |
||

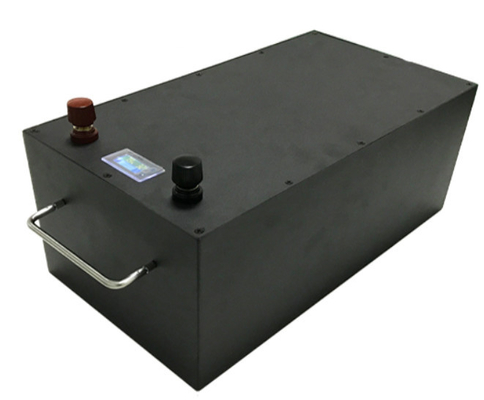

Solar Batteries 24v lifepo4 lithium ion battery 100ah for solar storage
Specification of 24V 100Ah LiFePO4 Battery
| Model No. | YS24-100 |
| Nominal Voltage | 25.6V |
| Nominal Capacity @ 0.2C | 100Ah |
| Watt-Hour | 2560Wh |
|
Dimensions Length Width Height |
650mm 438mm 178mm |
| Weight | 1.2Kgs |
| Internal Resistance | ≤50mΩ @ 50% SOC |
| Recommended Charge Current | 50A |
| BMS Maximum Charge Current | 100A |
| Charge Cut-off Voltage | 29.2V |
| BMS Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A (3S) |
| Discharge Cut-off Voltage | 20.0V |
| Expected Cycle Life | ≥2000 cycles at 0.2C/0.2C, 80% DoD |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Case Material | ABS |
| Terminal | T2 |
| Communication Interface | Bluetooth (Optional) |
The cell type can be specified,cylindrical and prismatic cells to make the battery
Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less.
Main Applications of 24V LiFePO4 battery
Good quality and best price 24V 100Ah LiFePO4 battery
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Caravan / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
