Product Details:
Payment & Shipping Terms:
|
| Nominal Voltage: | 12.8V | Nominal Capacity: | 12Ah |
|---|---|---|---|
| Watt-Hour: | 153.6Wh | Size: | 151mm*99mm *95mm |
| Weight: | Approx. 1.6Kg | Expected Cycle Life: | Residual Capacity Is More Than 80% Of Initial Capacity After 3,000 Cycles At 25℃, 1C |
| BMS Maximum Charge Current: | 20A | ||
| High Light: | 12Ah 12V Lithium Battery,12V 12AH Lifepo4 Battery,IP56 12v Lithium Ion Battery |
||

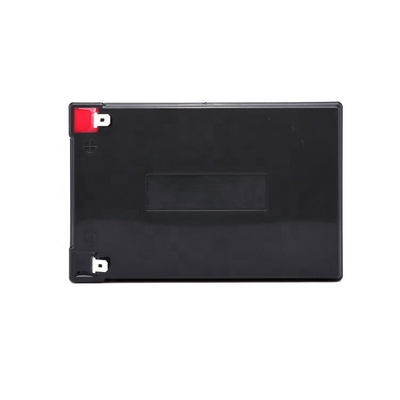

Solar Light 12Ah 12V Lithium Battery IP56 Water Dust Resistance
12V 12AH Lithium Ion Lifepo4 Battery for Solar Light
MaxLi Battery Ltd integrated with R&D, manufacture Lithium ion (LiNCM&LiFePO4) battery pack in Dongguan with own industrial park, sales office in Shenzhen, China. We have much experienced batteries&BMS engineering team, cooperating with world famous lithium battery control IC, MOSFETS and cells manufacture companies. OEM/ODM is our leading edge.
1. Product Details
|
Electrical Characteristics |
|
12.8V |
|
Nominal Capacity |
12Ah |
|
|
Energy |
153.6Wh |
|
|
Internal Resistance |
≤20mΩ |
|
|
Cycle Life |
>2000 cycles @1C 100%DOD |
|
|
Months Self Discharge |
<3% |
|
|
|
100% @0.5C |
|
|
|
96~99% @1C |
|
|
Standard Charge |
|
14.4±0.1V |
|
Charge mode |
0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) |
|
|
|
50A |
|
|
Max charge current |
100A |
|
|
|
14.6V±0.1V |
|
|
Standard Discharge |
Continuous Current |
100A |
|
Max. Pulse Current |
300A(<2s) |
|
|
|
10V |
|
|
Environmental |
Charge Temperature |
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP56 |
2. Related products
• Lithium-lron-Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 3,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. MaxLi provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
• We understand that standard battery packs don' t suit everyone's requirements meaning that a custom battery pack is often the best option. MaxLi is a leading Chinese designer and manufacturer of specialist battery pack solutions and can design & build a custom battery pack that will be best suited for your application.
3. Features
• Drop-in replacement - Group size as standard lead acid batteries
• 100% usable capacity, real deep cycle battery
• Free maintenance
• 3,000 - 5,000 times cycle life
• Able to be used in series and parallel
• Light weight
• Built-in BMS offers over and under voltage protection, over and under temperature protection, over current protection, short circuit protection and cell balancing.
4. Application
5. Product Line
Main products we manufacture and supply:
• Rechargeable lithium-ion NixCoyMnz / LiFePO4 battery cell. Cylindrial / Prismatic / Pouch type. High energy / high rate type, Chinese brand / Japanese brand / South Korean brand.
• Standard LiFePO4 battery packs as replacement to lead acid batteries.
• 12V - 48V LiFePO4 battery packs with Bluetooth communication function.
• 48V 2.4kWh - 51.2kWh LiFePO4 battery system
• Li-ion battery pack for e-bikes, medical equipment, power tools and backup power.
• High performance Battery Management System
• High efficiency lithium battery charger.
