Golf Cart RS232 4800Wh 48V Lithium Battery

China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

Golf Cart RS232 4800Wh 48V Lithium Battery

Golf Cart RS232 4800Wh 48V Lithium Battery
Golf Cart RS232 4800Wh 48V Lithium Battery Golf Cart RS232 4800Wh 48V Lithium Battery Golf Cart RS232 4800Wh 48V Lithium Battery Golf Cart RS232 4800Wh 48V Lithium Battery Golf Cart RS232 4800Wh 48V Lithium Battery

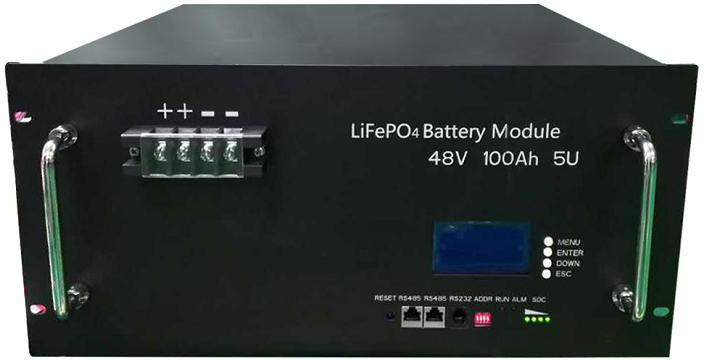

Large Image :  Golf Cart RS232 4800Wh 48V Lithium Battery

Product Details:
Place of Origin: Guang dong, China
Brand Name: MaxLi
Certification: UN38.3, CE, MSDS
Model Number: YS-48-100
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: 860-890usd/PCS
Packaging Details: UN carton per battery
Delivery Time: 15 days for samples and 30 days for bulk order
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 3000pcs per month
Detailed Product Description
Type: Lifepo4 Nominal Voltage: 48V
Nominal Capacity: 100Ah Weight: 55KG
BMS Maximum Charge Current: 100A Expected Cycle Life: Round 3,000 Cycles@100%DOD,1C At 25℃
Enclosure Protection: Iron(SPCC) Communication: RS232/RS485/CAN BUS Optional
Size: 650x438x178mm
High Light:

4800Wh 48V lithium battery


RS232 48 volt 100Ah lithium battery


4800Wh Solar Storage Batteries

4800Wh 48V/100Ah Lifepo4 Battery Pack Solar Storage Batteries/ Off-grid System/Golf cart





100 ampere hours (Ah).




rs232/rs485/can bus/others



(255”x 173” x  70”)


55KG(128 lbs.)


shell material



Charge Temp: 0℃ to 45℃(32F to 113F) @

                       60%+-25% relative hunmidity

Discharge Temp: -20℃ to 60℃(-4F to 140F) @

                       60%+-25% relative hunmidity

Storage Temp: -20℃ to 60℃(-4F to 140F) @

                       60%+-25% relative hunmidity



50A max; dicharge cut-off current is 40.0V


50A max current, 0.2C to 58.4V,then 58.4V,charge current to 0.02C(CC/CV);

Charge cut-off current is 58.5V


Around 3,000 cycles@100% DOD, 1C at 25℃.



Perid of Warranty

The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.


Smart Built-in BMS

passive balancing(active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.


Strong Communications

RS232/RS485/CAMBUS communiations for option.



  • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
  • Battery should be stayed in the ware house -20℃~35℃ where it’s dry, clean, shade, and well-ventilated.
  • The battery should be stored in 50% SOC during transportation.
  • The battery need to be charged every 6 months if out of use.
  • Keep the battery against dropping, turning over and serious stacking during loading.




Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.



4. Application

  • Electtic Vehicles, electric mobility
  • Solar /wind energy storage system
  • UPS, backup power
  • Telecommunication
  • Medical equipment
  • And so on

Golf Cart RS232 4800Wh 48V Lithium Battery 0


5. Package


Golf Cart RS232 4800Wh 48V Lithium Battery 1


6. FAQ


Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q: What about the lead time?
A: Sample needs around 15 days, mass production time needs negotiation.
Q: How do you ship the goods and how long does it take to arrive?
A:  Airline and sea shipping are optional.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it ok to print my logo on product?
A: Yes, Logo print in battery shell.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we’ll regard your inquiry priority.
