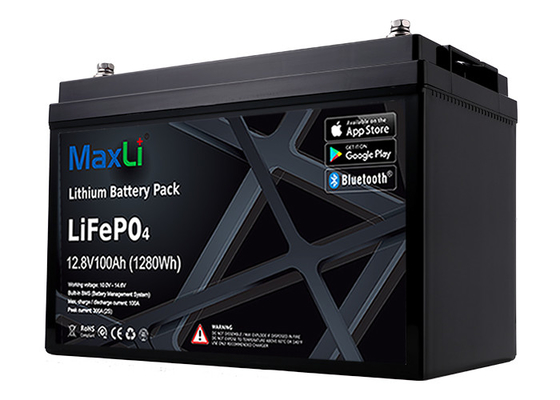

Boat 4S17P 100Ah Solar Panel Energy Storage Battery

Boat 4S17P 100Ah Solar Panel Energy Storage Battery
Boat 4S17P 100Ah Solar Panel Energy Storage Battery Boat 4S17P 100Ah Solar Panel Energy Storage Battery Boat 4S17P 100Ah Solar Panel Energy Storage Battery Boat 4S17P 100Ah Solar Panel Energy Storage Battery Boat 4S17P 100Ah Solar Panel Energy Storage Battery

Large Image :  Boat 4S17P 100Ah Solar Panel Energy Storage Battery

Product Details:
Place of Origin: Guang dong, China
Brand Name: MaxLi
Certification: UN38.3, CE, MSDS
Model Number: YS-12-100
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: $245-$280/PCS
Packaging Details: UN carton per battery
Delivery Time: 15 days for samples and 30 days for bulk order
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 3000pcs per month
Detailed Product Description
Type: Lifepo4 Nominal Voltage: 12V
Nominal Capacity: 100Ah Weight: 12.5KG
BMS Maximum Charge Current: 100A(120A Is Available) Expected Cycle Life: Round 3,000 Cycles@100%DOD,1C At 25℃
Peak Discharge Current: 300A (2S) Enclosure Protection: Pure ABS
Communication: Bleutooth For Option Enclosure Protection: IP56
Size: 328x172x212mm
High Light:

4S17P solar charger lithium battery

,

100Ah pylontech lithium battery

,

4S17P Rechargeable Solar Panel Battery

MaxLi 100ah Lifepo4 Batteri BMS IP65 Housing with M8 Connector for Camper/Boat/Solar System



Nominal Voltage
12.8V
Nominal Capacity @ 0.2C
100Ah
Watt-Hour
1280Wh
Weight
14.5Kg
Internal Resistance
≤40mΩ @ 50% SOC
Recommended Charge Current
20A
BMS Maximum Charge Current
100A
Charge Cut-off Voltage
14.6V
Expected Cycle Life
over 2,000 times
Peak Discharge Current
300A (2S)
Operating Temperature
-20℃-+60℃
Enclosure protection
IP56
Terminal Type
M8
Cell Type
Cylindrical 32700 3.2V/6000mAh, 4S17P
Operating Temperature
Charge
Discharge
Storage

0 - +55°C
-20 - +60°C
-5 - +35°C
Humidity
RH≤85%
Housing Material
ABS
Enclosure Protection
IP56
Terminal Type
M8



Boat 4S17P 100Ah Solar Panel Energy Storage Battery 0

3 YEAR WARRANTY
World beating, best in class, three year manufacturer defect warranty.



CAPACITY

100 ampere hours. MaxLi Lithium batteries provide consistent power for all 100 amp hours. MaxLi LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.



LIFECYCLES (BATTERY LIFESPAN)
Up to 100% capacity for 3,000 cycles in recommended conditions. The typical SLA has 400 cycles. MaxLi Lithium batteries last so long that the price per use is a fraction of traditional batteries.



CHARGE
50 A max, 14.6 V max recommended. Please note: this battery should be charged using a LiFePO4 compatible charger.



DISCHARGE
100A max continuous, 300 A max pulse (<3 sec). The flat discharge voltage curve provides a 75% bigger capacity then a SLA 100Ah battery.



Smart Built-in BMS

passive balancing(active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besies, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.





OPERATING TEMPERATURE

Charge Temp: 0℃ to 45℃(32F to 113F) @ 60%+-25% relative hunmidity

Discharge Temp: -20℃ to 60℃(-4F to 140F) @ 60%+-25% relative hunmidity

Storage Temp: -20℃ to 60℃(-4F to 140F) @ 60%+-25% relative hunmidity



APPLICATION

  • Solar/wind energy storage
  • Generator storage
  • Golf cart/RV/EV/Boat
  • Floor cleaning machine

FAQ

Q1: Are you a Factory or trading company?
A: We are manufacturer locates in Dongguan with integrated design, develop, manufacture, quality control and after sales. We are experienced in OEM/ODM project and you are welcomed to visit our company.
Q2: When can I get the price?
A: Our sales will quote to you within 24 hours exclude public holiday.
Q3: How can I get a sample to check your quality?
A: After sample price confirmation, we will provide samples as soon as possible for your testing.
Q4: What is the lead time for mass production?
A: It depends on our stock. If we have stock, and the lead time will be within 30 days. If not, we will start to make your orders after receiving deposit and update lead time with you in 48 hours.

Q5: What is your payment term?
A: We can accept TT, LC, PAYPAL,, etc.
Q6: How about the shipment?
A: We can ship the goods by air , by sea or by express
