Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery

Certification
China MaxLi Battery Ltd. certification
China MaxLi Battery Ltd. certification
I'm Online Chat Now

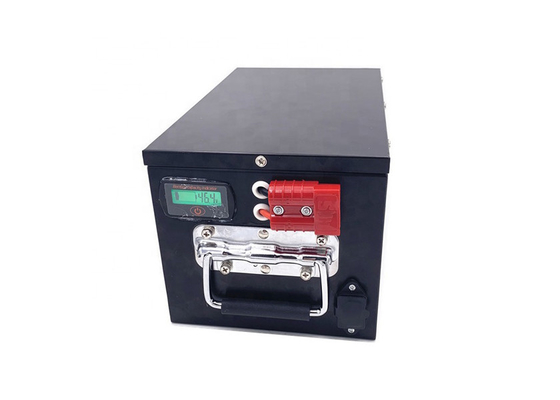

Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery

Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery
Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery

Large Image :  Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery

Product Details:
Place of Origin: China
Brand Name: MaxLI
Certification: CE, MSDS, UN38.3, ISO9001, ROHS
Model Number: YS24-200-C
Payment & Shipping Terms:
Minimum Order Quantity: 5packs
Price: To be negotiated
Packaging Details: UN packing carton
Delivery Time: 10-15days for samples
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 5000pcs per month
Detailed Product Description
Features: Safety,Deep Cycle,Long Life,Lighter Weight Etc. Type: Lifepo4 Battery Pack
Size: L523*W238*H218mm Cycle Life: >3000 Cycles @1C 100%DOD
Application: RV,Caravan,Motorhome,Golf Carts,Golf Trolley,Solar Energy Storage Etc. Nominal Capacity: 200Ah
Nominal Voltage: 24V BMS: With Integrated BMS
Communication Interface: RS232/RS485/CAN/Bluetooth Etc. OEM/ODM: Accepatable
Warranty: 3 Years
High Light:

200Ah RV Lifepo4 Car Battery

,

5120Wh RV Lifepo4 Car Battery

,

Lifepo4 Prismatic Cells Battery

Specification

Model No.
YS24-200-C
Nominal Voltage
25.6V
Nominal Capacity @ 0.2C
200Ah
Watt-Hour
5120Wh
Dimensions
523mm*238mm*218mm or customized
Weight
45Kg
Internal Resistance
≤50mΩ @ 50% SOC
Recommended Charge Current
75A(0.5C)
BMS Maximum Charge Current
150A
Charge Cut-off Voltage
28.8V
BMS Maximum Continuous Discharge Current
150A
Peak Discharge Current
450A (2S)
Discharge Cut-off Voltage
20.0V
Expected Cycle Life
≥2000 cycles at 0.2C 80% DoD
Self Discharge
<3% per month
Cell Type
Cylindrical 32700
Operating Temperature
Charge
Discharge
Storage

0 - +55°C
-20 - +60°C
-5 - +35°C
Humidity
RH≤85%
Case Material
ABS
Terminal
M8 bolt
Communication Interface
Bluetooth



Why Choose Us


Built-in Bluetooth Communication
Bluetooth bms can precisely monitor real-time paramters( volt, current, state of charge, cycle time, teperature) and alarm (high volt,low volt, over current, short circuit),keep you informed about functioning of your battery,and also State of Charge and how much energy left,save your hundred of dollars buying an external battery monitor.
Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery 0

Wide Applications
RV/Caravan/Motorhome, Golf Carts/Trolley, Solar Energy Storage Systems, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems etc.
Prismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery 1

More Competitive Features
Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.

Our Great Service
1).We specializes in research,develop,produce and selling lithium ion battery pack for over six years in our own factory.
2).Strong and professional R&D team to support.
3).Offer OEM service for customer's orders.
4).Quick reply,action for long-term cooperation.
5).Competitive price,quality and great pre-sale and after-sales service.

Company Profile

MaxLi Battery Ltd integrated with R&D, manufacture Lithium ion (LiNCM&LiFePO4) battery pack in Dongguan with own industrial park, sales office in Shenzhen, China. We have much experienced batteries&BMS engineering team, cooperating with world famous lithium battery control IC, MOSFETS and cells manufacture companies. OEM/ODM is our leading edge.

Factory & Exhibition & CertificatesPrismatic 5120Wh 24V 200Ah RV Lifepo4 Car Battery 2
