Product Details:
Payment & Shipping Terms:
|
| Charging Voltage: | 54V | Max Continuous Discharge Current: | 100A |
|---|---|---|---|
| Max Charge Current: | 100A | Recommend Charging Current: | 50A |
| BMS: | Built-in BMS | Cycle LiFe: | 3000 Cycle @ 100% DOD 1C, 80% Capacity Remain |
| Weight: | 55kgs | OEM/ODM: | Acceptable |
| Warranty: | 3 Years | Size: | 700*404*181mm |
| High Light: | 5KW Solar Energy Storage System,BMS Solar Energy Storage System,Energy Storage 48V 100Ah lifepo4 battery |
||

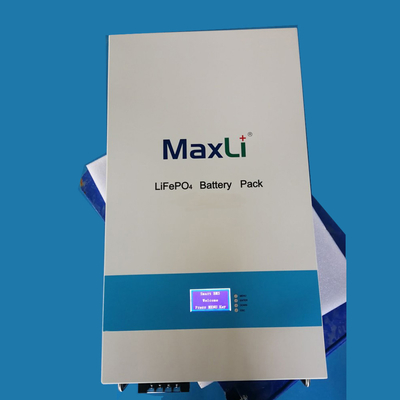

5KW Solar Energy Storage System 51.2V 100Ah Lithium battery 48V 100Ah lifepo4 battery ESS
|
Electrical Characteristics |
Nominal Voltage | 48.0V |
| Nominal Capacity | 100Ah | |
| Energy | 4800Wh | |
| Internal Resistance | ≤ 50mΩ | |
| Cycle Life | ＞2000cycles @1.0C 100%DOD | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100%@0. 2C | |
| Efficiency of Discharge | 96~99%@0.5C | |
|
Standard Charge |
Charge Voltage | 54.8±0. 1V |
| Charge Mode | 0.2C to 57.6V,then 57.6V,charge current to0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 80A | |
| Charge Cut-off Voltage | 58.5V±0. 2 | |
|
Standard Discharge |
Continuous Current | 80A |
| Max continuous discharge current | 100A | |
| Discharge Cut-off Voltage | 37.5V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6.5Ah 15S16P |
| Shell material | Iron(SPCC) | |
| Dimensions (in./mm.) | 700 x 404 x 181 mm | |
| Weight (lbs./kg.) | Approx:55Kg | |
| Gravimetric specific energy | 85WH/KG | |
| Protocol (optional) | RS485/RS232/CANBus | |
| Display (optional) | LCD |
Applications
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
Supporting multi batteries in parallel:

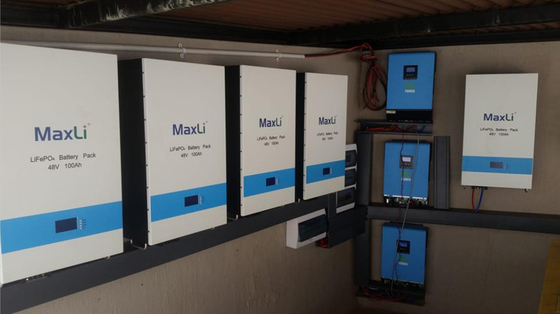

Home solar energy system applications:
Why choose lithium battery?
Compared to lead acid batteries,lithium batteries is 5 times longer cycle life,3 times lighter weight,much superior safety, much wider temperature range and flexibity.
Strictly according to the CE/ROHS/UN38.3/MSDS regulations to reach the high quality regulations:
Well Package with high quality foam and UN standard carton to well protect the battery during the long shipping time:
