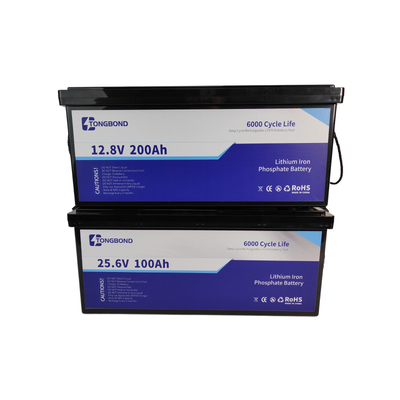

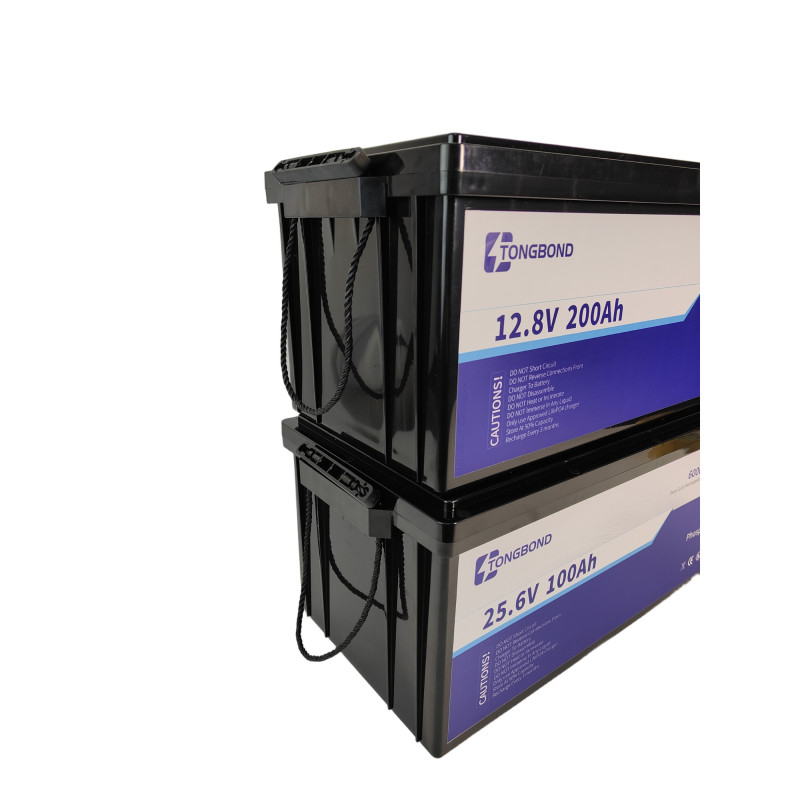

Shock Resistant LFP Lifepo4 Battery With BMS Ultra Low Self Discharge Rate
Featuring a lithium iron phosphate battery core, this product is integrated with a sophisticated BMS. It is engineered to provide reliable protection mechanisms such as overcharge cut-off, overdischarge prevention, overcurrent limitation, short-circuit safeguarding, and over-temperature control. In addition, the BMS enables cell equalization and facilitates quick recharging, guaranteeing stable operation and prolonged lifespan.
Technical Parameters:
|
Model
|
EA-12V-100Ah
|
EA-12V-200Ah
|
EA-24V-100Ah
|
|
Product parameter
|
Nominal voltage
|
12.8V
|
12.8V
|
25.6V
|
|
Nominal capacity
|
100AH
|
200AH
|
100AH |
|
Energy
|
1280WH
|
2560WH
|
2560WH
|
|
Cell assembly
|
3.2V100AH -4S1P
|
3.2V100AH -4S2P
|
3.2V100AH -8S1P
|
|
Dimension (mm)
|
330*173*221
|
522*238*222
|
522*238*222
|
|
Weight (KG)
|
11±0.5Kg
|
21±1Kg
|
21±1Kg
|
|
Cycle Life
|
>6000(25℃ , @0.5C 100%DOD)
|
|
Charge and discharge parameter
|
Charging voltage
|
14.4-14.6V
|
14.4-14.6V
|
28.8-29.2V
|
|
Discharge cut-off voltage
|
10V±0.5V
|
10V±0.5V
|
20V±0.5V
|
|
Maximum discharge current
|
100A
|
100A
|
100A
|
|
Maximum charging current
|
50A
|
100A
|
50A
|
|
Operating temperature
|
Discharge
|
20℃~55℃
|
|
Charging
|
0℃~55℃
|
|
Storage temperature
|
Within a month
|
-20℃~45℃
|
|
Within a year
|
0℃~35℃
|
|
Series-parallel quantity
|
Series connection
|
4
|
4
|
2
|
|
In parallel
|
4(Need to control the battery at the same voltage)
|
Packing and Shipping:
Our LiFePO4 lithium battery is meticulously packed to guarantee safe arrival. Each unit is securely enclosed in protective wrapping and placed in a durable box with cushioning materials to prevent any damage during transportation.
We collaborate with trusted shipping services to ensure fast and secure delivery. Every shipment includes tracking, allowing you to monitor your order in real time.
FAQ:
Q: Can I use this battery with a solar panel?
A: Yes, this battery is suitable for use with a solar panel.
Q: Can I charge this battery with a regular wall outlet?
A: Yes, you can charge this battery with a regular wall outlet. However, you need to use a suitable charger that is compatible with the battery's voltage and capacity requirements.
Q: Can I use multiple batteries in parallel or series?
A:Yes, you can use multiple batteries in parallel or series.
Q:Will connecting batteries in parallel or series affect the battery life?
A: Connecting batteries in parallel or series can affect battery life
Q:Will using higher quality batteries in parallel or series increase battery life?
A: Simply using high - quality batteries is not a guarantee of increased battery life. Proper installation, charging, and discharging practices, as well as regular maintenance, are also crucial factors in ensuring the long - term performance and lifespan of batteries connected in parallel or series.
