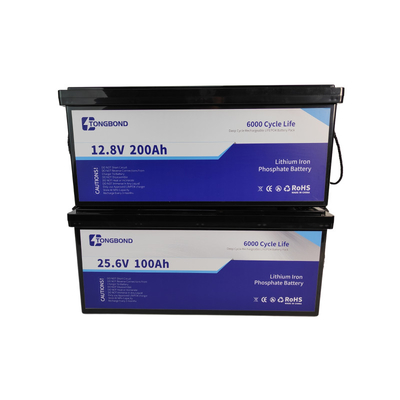

LFP Lithium Ion Battery Pack High Discharge Rate Robust Shell for Industrial UPS
The lithium iron phosphate battery of this product is equipped with an advanced BMS. This system is designed to offer multiple layers of protection, safeguarding against overcharging scenarios, stopping overdischarge events, restricting overcurrent flow, averting short-circuit risks, and regulating over-temperature situations. Meanwhile, it also takes care of cell balance and enables fast-charging functionality for optimal user experience.
Technical Parameters:
|
Model
|
EA-12V-100Ah
|
EA-12V-200Ah
|
EA-24V-100Ah
|
|
Product parameter
|
Nominal voltage
|
12.8V
|
12.8V
|
25.6V
|
|
Nominal capacity
|
100AH
|
200AH
|
100AH |
|
Energy
|
1280WH
|
2560WH
|
2560WH
|
|
Cell assembly
|
3.2V100AH -4S1P
|
3.2V100AH -4S2P
|
3.2V100AH -8S1P
|
|
Dimension (mm)
|
330*173*221
|
522*238*222
|
522*238*222
|
|
Weight (KG)
|
11±0.5Kg
|
21±1Kg
|
21±1Kg
|
|
Cycle Life
|
>6000(25℃ , @0.5C 100%DOD)
|
|
Charge and discharge parameter
|
Charging voltage
|
14.4-14.6V
|
14.4-14.6V
|
28.8-29.2V
|
|
Discharge cut-off voltage
|
10V±0.5V
|
10V±0.5V
|
20V±0.5V
|
|
Maximum discharge current
|
100A
|
100A
|
100A
|
|
Maximum charging current
|
50A
|
100A
|
50A
|
|
Operating temperature
|
Discharge
|
20℃~55℃
|
|
Charging
|
0℃~55℃
|
|
Storage temperature
|
Within a month
|
-20℃~45℃
|
|
Within a year
|
0℃~35℃
|
|
Series-parallel quantity
|
Series connection
|
4
|
4
|
2
|
|
In parallel
|
4(Need to control the battery at the same voltage)
|
Packing and Shipping:
Our LiFePO4 lithium battery is meticulously packed to guarantee safe arrival. Each unit is securely enclosed in protective wrapping and placed in a durable box with cushioning materials to prevent any damage during transportation.
We collaborate with trusted shipping services to ensure fast and secure delivery. Every shipment includes tracking, allowing you to monitor your order in real time.
FAQ:
Q: What charger suits Green Power Lithium Ion Batteries?
A: An adjustable one matching battery voltage & capacity, with overcharge/discharge protection.
Q:Are Lithium Iron Phosphate Batteries recyclable?
A: Yes, materials can be recovered and reused. Dispose of them properly at end of life.
Q:Can I use a power inverter with these batteries?
A: Yes, but ensure inverter’s compatibility with battery voltage & capacity.
Q: When to replace LFP Lithium Ion Battery?
If capacity drops, charging takes longer, overheats, or fails to power equipment.
