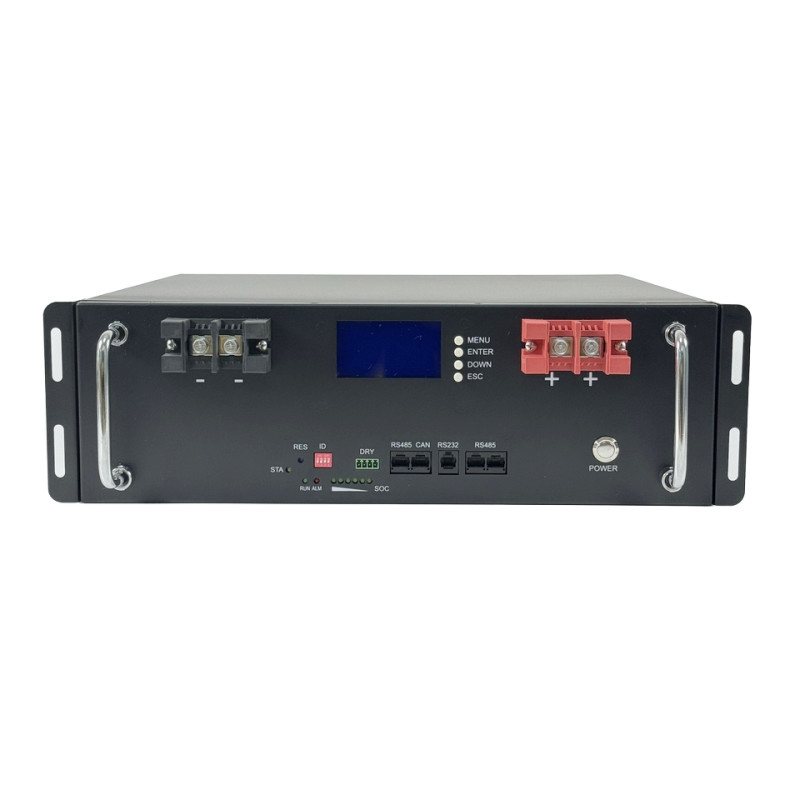

100Ah 200Ah Rack Mount Lithium Battery Modular Design for Easy Capacity Expansion
1.High - performance lithium iron phosphate battery: High safety and long service life.
2. External weak - current switch: Reduces power consumption and enhances transport/storage safety.
3. RS485/CAN communication: Easily connects with other communicating devices.
4. Connect an external wireless module for remote data monitoring and control.
5. Multiple protection functions ensure all - around power supply safety.
6. Stable output, compatible with various loads within the voltage range.
7. Supports up to 15 independent modules in parallel.
Technical Parameters:
|
Model
|
51.2V 100AH
|
51.2V 200AH |
| Voltage |
51.2v
|
51.2v |
|
Capacity
|
100Ah |
200Ah |
| Engery |
5.12KWh |
10.24KWh |
|
Standard charge current
|
50A |
|
Max charge current
|
100A |
|
Max charge volate
|
58.4V |
|
Standard discharge current
|
100A |
|
Max discharge volate
|
100A |
|
Peak discharge volate
|
150A
|
|
Operating temperature
|
Charge 0℃ ~+55℃
|
|
Discharge -20℃ ~+55℃
|
|
Storage temperature
|
-20℃ ~+45℃
|
|
-20℃ ~+35℃
|
|
Size (LxWxH)
|
442*420*133 mm
|
442*680*233 mm
|
|
Weight
|
45±5 kg
|
95±5 kg
|
System Diagram
Applications:
The 51.2V 100Ah Iron Phosphate Lithium Battery is ideal for various energy storage and backup applications, including wind power systems for stable energy storage, solar energy systems for off-grid and hybrid setups, and telecommunications for reliable backup power. It is also widely used in solar street lighting to ensure continuous illumination, as well as in UPS (Uninterruptible Power Supply) systems to provide a dependable power source during outages. With its durability and efficiency, this battery is a perfect solution for both residential and commercial energy needs.
Packing and Shipping:
Our LiFePO4 Lithium Battery is carefully packaged to ensure safe delivery to our customers. Each battery is securely wrapped and placed in a sturdy box with appropriate cushioning materials to prevent damage during transit.
For shipping, we partner with reliable courier services to deliver your order efficiently and securely. All shipments are tracked to provide you with real-time updates on the status of your delivery.
FAQ:
Q: Can I install this rack-mount lithium battery in a humid environment?
A: It's not advisable. High humidity can cause corrosion on the battery terminals and internal components. Ideally, the relative humidity should be kept below 60%. If your environment is humid, consider using a dehumidifier or a sealed enclosure to protect the battery.
Q: How do I know if the battery needs to be replaced?
A: Monitor the battery's capacity over time. If it consistently fails to hold the rated charge, for example, if the capacity drops below 80% of the initial value after a certain number of charge-discharge cycles (usually specified by the manufacturer), it may be time for a replacement. Additionally, if you notice abnormal swelling, overheating, or erratic voltage readings, these could also be signs.Q: What kind of rack is suitable for mounting this battery?A: It depends on the battery's size and weight. Generally, a sturdy, metal rack with proper load-bearing capacity and ventilation is recommended. The rack should be able to accommodate the battery's dimensions and have enough space for cable management. Check the manufacturer's guidelines for specific rack requirements.
Q: What kind of rack is suitable for mounting this battery?
A: It depends on the battery's size and weight. Generally, a sturdy, metal rack with proper load-bearing capacity and ventilation is recommended. The rack should be able to accommodate the battery's dimensions and have enough space for cable management. Check the manufacturer's guidelines for specific rack requirements.
