Product Details:
|
| Battery Type: | LiFePO4 (Lithium Iron Phosphate) | Nominal Voltage: | 25.6V |
|---|---|---|---|
| Nominal Capacity: | 100Ah | Energy: | 2560Wh |
| Cycle Life: | 6000+ Times | Charging Voltage: | 29.2V |
| Discharge Cut-off Voltage: | 20V | Max Continuous Discharge Current: | 100A |
| Peak Discharge Current: | 200A | Charging Current: | 50A |
| Battery Case: | ABS Plastic | Operating Temperature: | -20°C ~ 60°C |
| Protection: | Built-in Smart BMS | Waterproof Level: | IP65 |
| Highlight: | 24V 100Ah LiFePO4 RV battery,deep cycle lithium iron phosphate battery,24V LiFePO4 battery with BMS |
||
Tongbang support OEM / ODM customization:
Logo printing
Battery case color
Bluetooth monitoring
Communication protocol (CAN / RS485)
Custom battery capacity

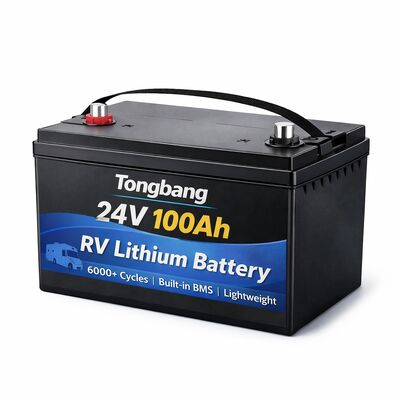

The 24V 100Ah RV battery is designed for higher voltage RV systems, providing stable power and efficient energy storage.
![]()
High voltage system (24V)
Long cycle life
Lightweight design
Smart BMS protection
Expandable system
|
Voltage |
25.6V |
|
Capacity |
100Ah |
|
Energy |
2560Wh |
|
Cycle Life |
6000 cycles |
|
Max Discharge |
100A |
|
Weight |
~20kg |
|
Item |
Lead Acid |
LiFePO4 |
|
Cycle Life |
300-500 |
6000+ |
|
Weight |
Heavy |
60% lighter |
|
Charging Time |
Slow |
Fast |
|
Usable Capacity |
50% |
90% |
Large RV systems
Solar energy storage
Camper van power system
Q1: Can I swap my old lead-acid battery for this one?
A: Yes, it’s a direct drop-in replacement. You get more power with significantly less weight and a much smaller footprint.
Q2: Can I link multiple batteries together for more power?
A: Certainly. Whether you need higher voltage or more runtime, our batteries can be easily connected in series or parallel.
Q3: Is it a good fit for off-grid or marine solar setups?
A: It’s an ideal choice. It handles the variable charging of solar systems excellently, providing reliable backup power for boats, RVs, and cabins.
Q4: How many years will this battery last?
A: With a rating of 6,000+ charge cycles, this battery is designed to provide reliable service for 10 years or more under typical usage.
Q5: Can you manufacture these with my company logo?
A: We certainly can. Tongbang specializes in tailored solutions, offering full support for custom logos, packaging, and technical specifications.
