Product Details:
Payment & Shipping Terms:
|
| Battery Type: | Smart Bluetooth 24V | Nominal Voltage: | 25.6V |
|---|---|---|---|
| Charging Voltage: | 29.2V | Nominal Capacity: | 54Ah |
| Constant Discharge Current: | 50A | Constant Charge Current: | 50A |
| Peak Current: | 150A Last For 3 Seconds | Built-in BMS: | With Bluetooth |
| Size: | L328*W172*H212mm | Weight: | 13.5kgs |
| High Light: | 50Ah Bluetooth Lithium battery,IP56 24V bluetooth replacement battery,50Ah bluetooth replacement battery |
||

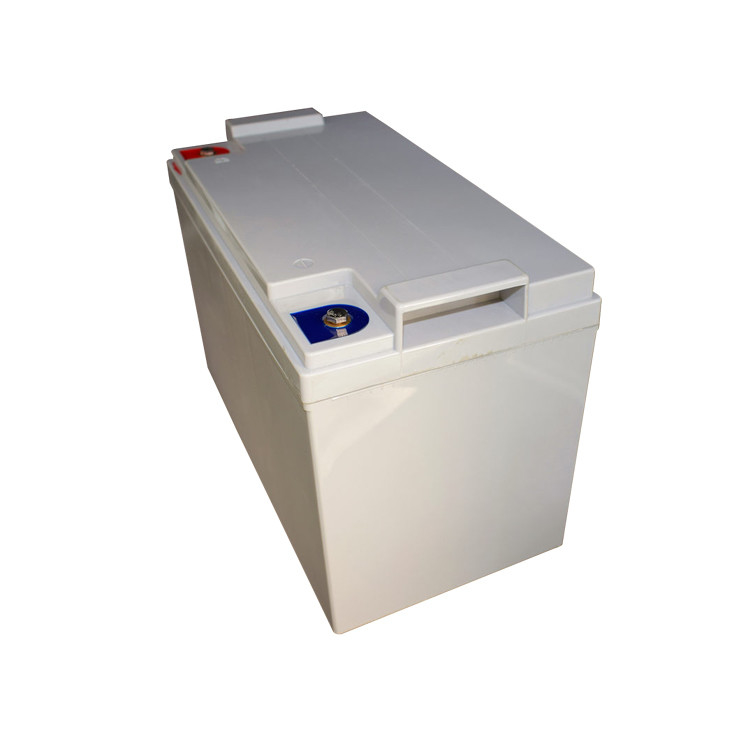

High Quality Cheap Price Lifepo4 Battery Pack 24V 50Ah lithium ion battery for rv/marine/solar /golf cart/ups/camping
Brief introducation
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
ADVANTAGES
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability
Specification of 24 volt 50Ah lithium batteries
|
Electrical Characteristics |
Nominal voltage |
24V |
| Nominal Capacity | 50Ah | |
| Energy | 640Wh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of charge
|
100% @0.5C | |
|
Efficiency of discharge
|
96~99% @1C | |
|
Standard Charge |
Charge voltage | 14.4±0.1V |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
| Recommend voltage | 25A | |
| Max Charge Current | 50A | |
| Charge cut off voltage | 14.6V±0.1V | |
|
Standard Discharge |
Continuous Current | 50A |
| Max. Pulse Current | 150A(<2s) | |
|
Discharge cut off voltage |
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| IP rate | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | 328x172x212mm | |
| Weight (kg./lbs.) | 13.5Kgs | |
| Terminal | M8 | |
| Bluetoot | with | |
ADVANTAGES
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability
WHY CHOOSE US ?
1.Experience--More than 5 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.
ATTENTION:
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
Packing
Carton + Wooden + Pallet , Custom is welcome
Shipping
Express | By air | By sea
According to your requirments
